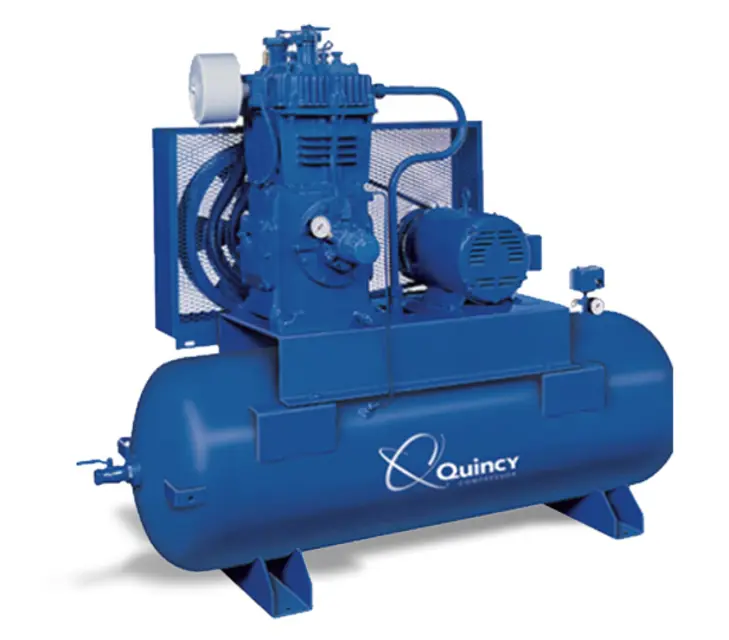

Quincy Compressor QC01003D1A

Is the compressor equipped with a filter?

Oil Sump Strainer Screen Cleaning

Clean the oil sump strainer screen with a safety solvent (QR Models only)

Torque compressor sheave fasteners to specifications

Measure the span length of the drive (in inches)

Calculate the required deflection (in inches)

Lay a straightedge across the top outer surface of the drive belt from pulley to pulley

Apply pressure with a belt tension gauge and record the deflection force reading

Is the deflection force reading within the minimum and maximum values?

Adjust belt(s) if the deflection force reading is not within the specified range

Recheck the tension of the new belts several times in the first 50 hours of operation

Check lubricant levels for QT models

Add lubricant to QT models until it reaches the bottom edge of the lubricant fill opening

Maintain lubricant levels for other models between high and low level marks on dipstick

Drain and replace contaminated lubricant

Drain drop legs and traps in air distribution system

Filter Replacement Instructions

Apply a thin film of lubricant to the gasket surface of the new filter

Spin the filter on the threaded stud until the gasket makes contact with the housing

Tighten the filter an additional 3/4 turn

Is the filter compatible with Quin-Cip or QuiCip-D lubricant?

Is the filter free from bends or damage?

Inspect air tank for visible damage or corrosion

Check that all inspection points are accessible

Measure tank wall thickness at the top

Measure tank wall thickness at the sides

Measure tank wall thickness at the bottom (lowest point where condensation can accumulate)

Refer to federal, state, or local codes for mandatory air tank maintenance information
