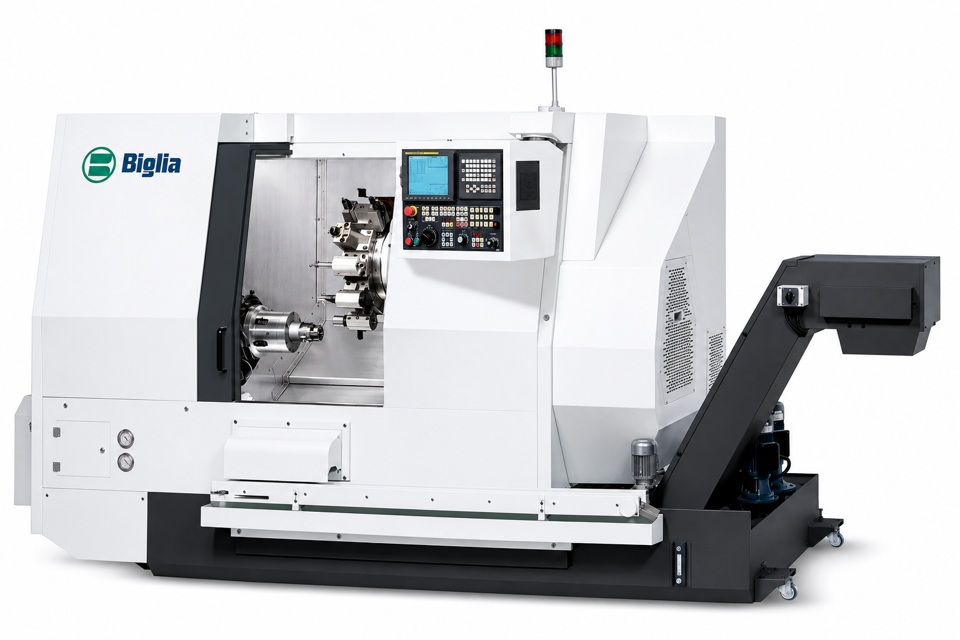

Officine E. Biglia & C. CNC Lathe B 565 SM

Switch the machine off by rotating lever A of the main switch to position -0- (tension OFF).

Move bar-feeder C (backward or sideward) according to the bar-feeder type and remove cover B.

Removal of Existing Bar-Guide Tube

Remove the cover of the limit switch box.

Is a bar-guide tube already mounted?

If a bar-guide tube is already mounted, remove it by loosening the two screws D.

Installation of New Bar-Guide Tube

Clean spindle bore with a cloth pad soaked with oil.

Ensure the machine is powered off before starting the procedure.

Gather necessary tools and equipment for adjustment.

Limit Switch Positioning for Type K2.1 = 1

Verify the following conditions for Type K2.1 = 1

Is the workpiece larger than standard causing the machine to stop?

Is the piston at 'forward' travel end (jaws open)?

Is the piston at 'backward' travel end (jaws closed)?

Limit Switch Positioning for Type K2.1 = 0

Describe any abnormal situations found during inspection

Check the lubricant level through opening A on door B

Is the lubricant level adequate?

Insert the retaining rod C in the chuck

Loosen screws on the three jaws D

Extract the three jaws D together with the 'Tee' small blocks (E)

Clean the three 'Tee' small block seats

Take off 'Tee' small blocks and mount them back on the new jaws using the same screws

Fit back the jaws D (or the hardened ones, follow the numbers) making sure each jaw is positioned correctly

Screw the jaws without tightening them down

Ensure all covers are in place and doors are closed

Is the floor around the machine free from oil or coolant stains?

Enter the pressure reading from the pressure gauge

Is the working pressure at '0'?

Describe any abnormal situations found during inspection

Inform supervisor if any abnormal situation is found
