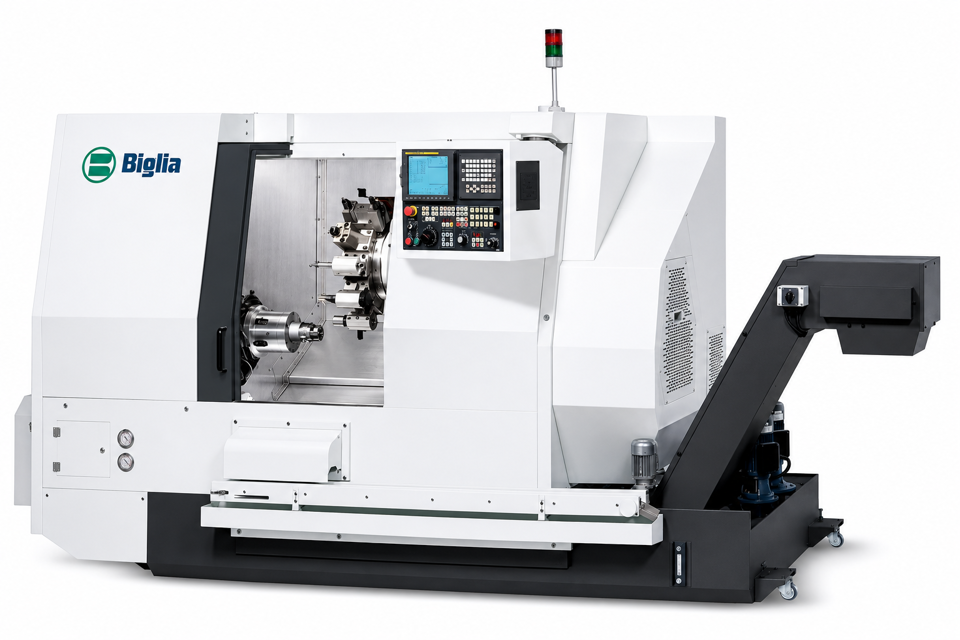

Officine E. Biglia & C. CNC Lathe B 565

Ensure all covers are in place and doors are closed

Verify the floor around the machine is free from oil or coolant stains

Enter the pressure reading from the pressure gauge

Is the working pressure at '0'?

Was there any abnormal situation found during the inspection?

If yes, describe the abnormal situation

Shut off air by the cutoff valve B

Check condensation level in glass D

Is the condensation level acceptable?

Drain condensation through valve E if necessary

Check lubrication oil level in glass F

Is the lubrication oil level at or above 1/4?

Set tailstock in its work position

Mount the gauge holder with the magnetic base H on the chuck

Place the gauge I probe on the rotating head G taper

Concentricity Check and Adjustment

Check concentricity between spindle and rotating head by rotating the gauge (chuck)

Loosen the six screws F if correction is required

Describe the direction of rotation for lock-ring + bushing adjustment

Ensure tool-holders are securely fixed

Verify all tools are fitted in their correct position and securely fixed

Check insert wear and ensure it is well secured

Enter the clamping pressure of the main spindle clamping attachment

Enter the clamping pressure of the sub-spindle clamping attachment

Confirm no wrenches used for tooling-up change have been left inside the machine

Release stop nut B of the valve on the side where intervention will be performed

Adjusting Forward Paddle Positioning Speed (Loading Area)

Release the stop nut on side R1

Adjusting Backward Paddle Positioning Speed (Unloading Area)

Release the stop nut on side R2
