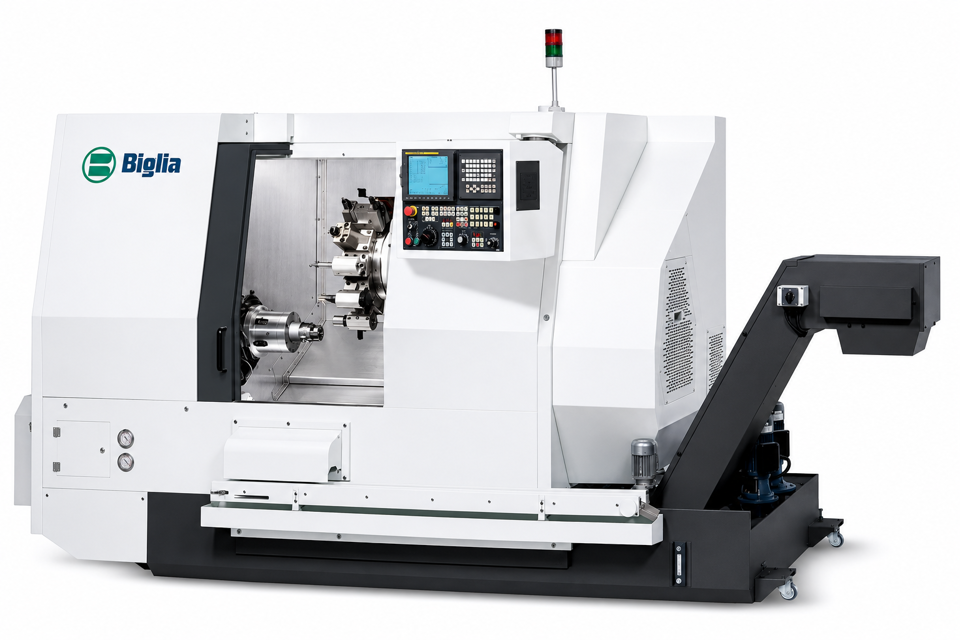

Officine E. Biglia & C. CNC Lathe B 545 Y

Describe any abnormal situations found during inspection

Check and record the oil level in the tank

Is the oil level within the normal range?

Describe actions taken if oil level is abnormal

Is greasing the self-centering chuck required?

Grease the self-centering chuck if required

Ensure no compressed air is used on the chuck and spindle front flange

Ensure tool-holders are securely fixed

Verify all tools are fitted in their correct position and securely fixed

Check insert wear and ensure it is well secured

Enter the clamping pressure of the main spindle clamping attachment

Enter the clamping pressure of the sub-spindle clamping attachment

Confirm no wrenches used for tooling-up change have been left inside the machine

200 Hourly CNC Lathe Live Spindle Maintenance

Ensure live spindles are greased for 'life' and require no maintenance.

Check for any visible damage to seals due to chipping bits.

Rotate live-spindle manually to check for axial or radial plays.

Fit live-spindle on the machine and rotate at 2000 rpm in one direction (M73).

Rotate live-spindle in reverse direction at 2000 rpm (M74).

Describe any abnormal situations found during inspection

Check the lubricant level through opening A on door B

Is the lubricant level adequate?
