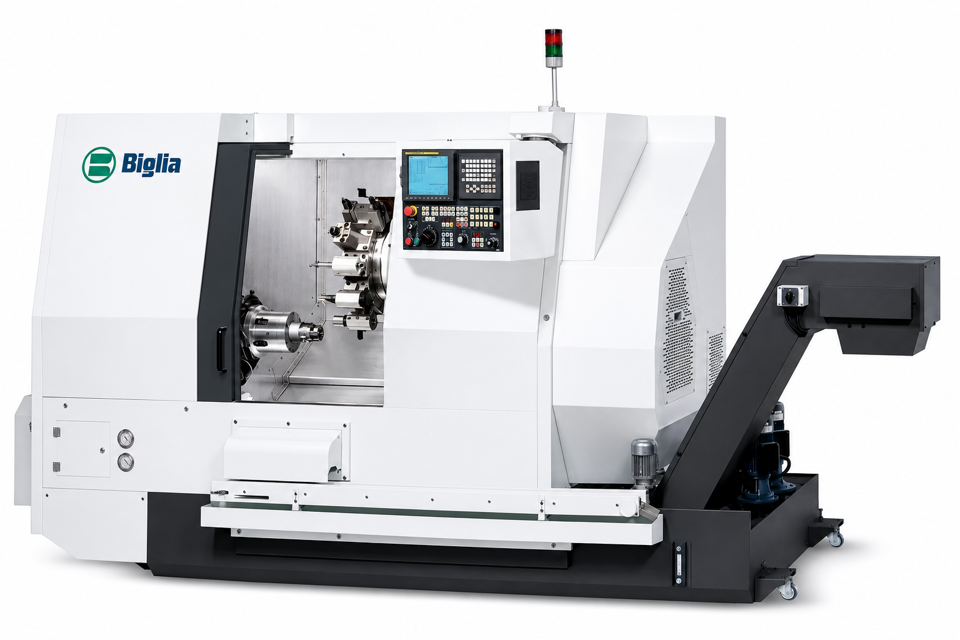

Officine E. Biglia & C. CNC Lathe B 545 SM

Remove the drainage pipes A from the inside of the oil collecting container B and place them on the coolant tank

Ensure the coolant tank is positioned to catch any oil spillage

Empty the container B following the general rules for the correct oil disposal

Is the oil disposal in compliance with environmental regulations?

Perform level control of the oil container

Check for presence of coolant fluid in the lubrication oil container

Remove components and clean area

Is the coolant unloading hole C clean?

Dispose of collected swarfs properly

Ensure all components are returned to their original positions

Describe any abnormal situations found during inspection

Check the lubricant level through opening A on door B

Is the lubricant level adequate?

Ensure the machine is powered off before starting the procedure.

Gather necessary tools and equipment for adjustment.

Limit Switch Positioning for Type K2.1 = 1

Verify the following conditions for Type K2.1 = 1

Is the limit switch located approximately 1 mm from the flange?

Does a bigger piece than standard cause the machine to stop?

Limit Switch Positioning for Type K2.1 = 0

Verify the following conditions for Type K2.1 = 0

Avoid using compressed air to clean the machine

Do not close collet if bar is not inserted

Adjust clamping pressure to type of collet and machining

Procedure applies to both simple-cone and double-cone collets

Open collet by pressing push-button for the main or sub-spindle
