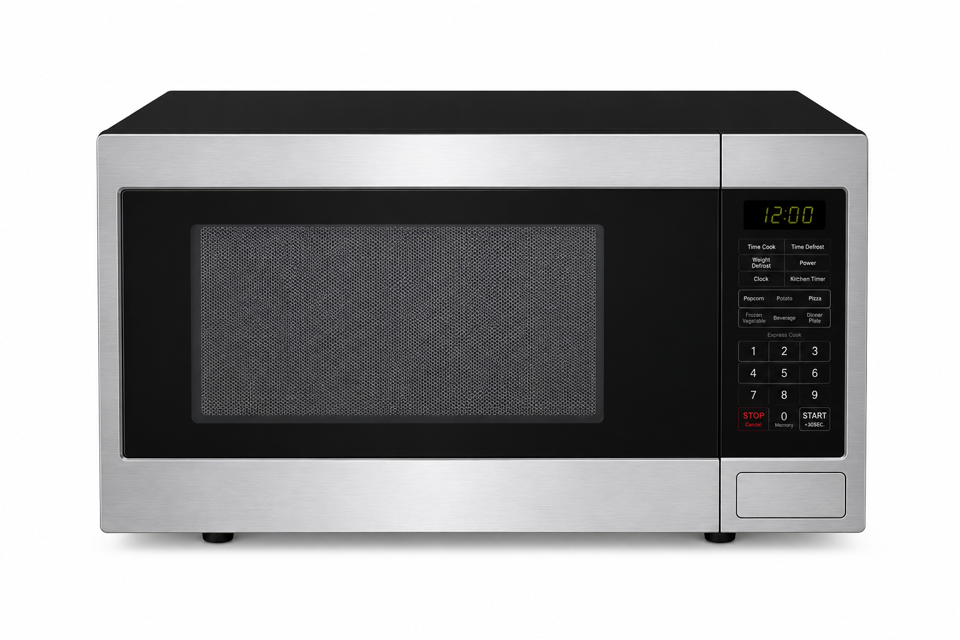

Sharp Microwave Oven R-220BW
Create an account to install this asset package.
Maintenance Plans for Sharp Microwave Oven Model R-220BW
Integrate maintenance plans directly into your work orders in MaintainX.
Microwawe Oven Monitor Switch Testing
Preparation
Disconnect the power supply cord
Remove outer case
Door and Capacitor
Open the door and block it open
Discharge high voltage capacitor
Monitor Switch Testing
Ensure secondary interlock switch and primary interlock relay are operating properly
Disconnect the wire lead from the monitor switch (COM) terminal
Microwawe Oven Key Unit Testing
Preparation
Disconnect the power supply cord
Remove outer case
Open the door and block it open
Testing Procedure
Discharge high voltage capacitor
Does the display clear when the STOP/CLEAR pad is depressed?
Verify the following components
Is the door sensing switch (stop switch) good?
Microwave Oven Adjustment
Preparation
Disconnect the power supply cord and remove outer case
Open the door and block it open
High Voltage Capacitor Discharge
Discharge high voltage capacitor
Latch Hook Adjustment
Loosen the screws holding the latch hook to the flange of the oven front face
Adjust latch hook with the door closed
Secure the screws firmly
Microwawe Oven Control Panel Assembly Testing
Preparation for Testing
Disconnect the power supply cord and remove outer case
Open the door and block it open
Discharge high voltage capacitor
Disconnect the leads to the primary of the power transformer
Ensure leads are isolated from other components and oven chassis using insulation tape
Reconnect the power supply cord
Key Unit Testing
Check for symptoms indicating a defective key unit
Microwawe Oven Power Transformer Testing
Preparation
Disconnect the power supply cord
Remove outer case
Open the door and block it open
Testing
Discharge high voltage capacitor
Measure the resistance of the primary coil with an ohmmeter (R x 1 scale)
Is the resistance of the primary coil less than 1 ohm?
Measure the resistance of the high voltage coil with an ohmmeter (R x 1 scale)
Parts for Sharp Microwave Oven R-220BW
Access the parts list for your equipment in MaintainX.
Secondary Interlock Switch & Door Sensing Switch
QSW-MA131WRE0
C/T Fuse & Monitor Switch Assembly
FFS-BA020WRK0
Power Supply Cord
FACCDA040WRE0
Oven Lamp Socket
QSOSLA021WRE0
High Voltage Rectifier
FH-DZA081WRK0
Secondary Interlock Switch & Door Sensing Switch
QSW-MA131WRE0
C/T Fuse & Monitor Switch Assembly
FFS-BA020WRK0
Power Supply Cord
FACCDA040WRE0
Oven Lamp Socket
QSOSLA021WRE0
High Voltage Rectifier
FH-DZA081WRK0
Secondary Interlock Switch & Door Sensing Switch
QSW-MA131WRE0
C/T Fuse & Monitor Switch Assembly
FFS-BA020WRK0
Power Supply Cord
FACCDA040WRE0
Oven Lamp Socket
QSOSLA021WRE0
High Voltage Rectifier
FH-DZA081WRK0
