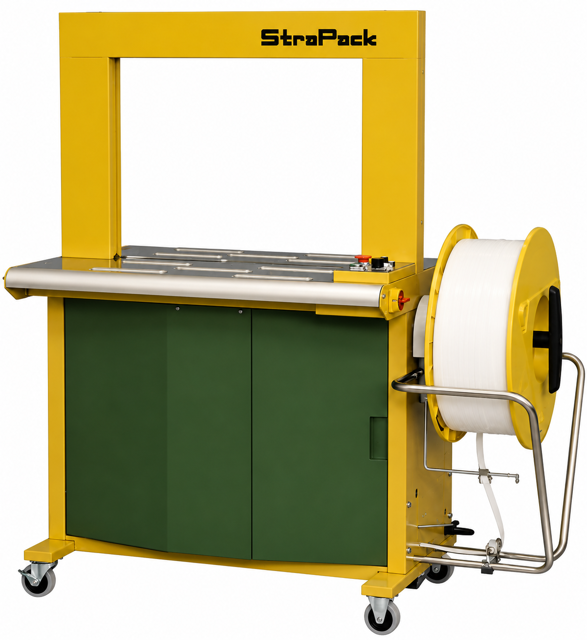

StraPack Corporation Strapping Machine SQ-800SUS

Push and Lock the Stop Switch and turn off the Power Supply Switch.

Open the Table (Front) and loosen the nut that is fixing Adjust Spring Hook.

Determine the condition of the strap in the pool box

After making the adjustment, tighten the nut and fix Adjust Spring Hook.

Close the Table and fix it with screws.

Turn the Adjust Spring Hook counterclockwise if there is insufficient strap.

Is the arrow mark of the handle's center within +/-45 degrees?

Open Table and move the Timing Plate

Press the Start Switch and make one cycle

Push and Lock the Stop Switch and turn off the Power Supply Switch

Open the Table and put a mark on Timing Plate ①

Manually turn Handle ② to align arrow mark overhead and center Right Band-way Cam hole ③ with bearing center ④

Loosen screw ⑤ and move the Timing Plate back to its original position

Ensure maintenance is performed by trained personnel.

Turn off machine power and unplug the power plug.

Avoid touching moving parts such as Rollers, Solenoids, Cam, linking parts, Right/Center/Left Blocks, and Slide Table.

Do not touch the heater when the machine is on.

Wait for the heater and M2 Motor to cool off after power is turned off.

Lock out the cam switch to avoid unintended power activation.

Ensure remaining electricity is discharged before working on the IC Board.

Handle springs carefully to avoid injury.

Turn off the Power Supply Switch

Relocate Idler Pulley to adjust tension

Is the belt tension appropriately adjusted?

Ensure the following safety precautions are taken

Ensure the following cautionary measures are observed

Replace tables and outer panels

Turn the power back on and confirm safety switches work normally

Keep the Power Plug free of debris and dusts
