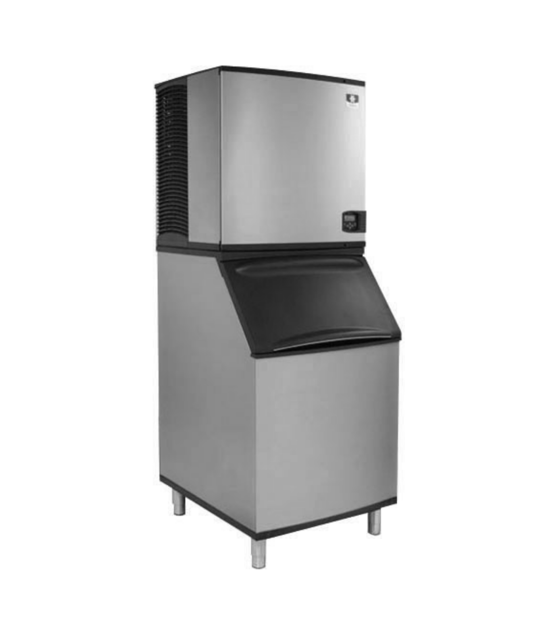

Manitowoc Refrigeration Equipment IR0906A

Gently flex the curtain in the center and remove it from the right side

Depress tabs on right and left side of the water trough

Allow front of water trough to drop as you pull forward to disengage the rear pins

Pull the water level probe straight down to disengage

Lower the water level probe until the wiring connector is visible

Ensure the area around the ice machine is clear of obstacles.

Gather cleaning materials: damp cloth, mild dish soap, clean soft cloth.

Wipe surfaces with a damp cloth rinsed in water to remove dust and dirt.

Is there any greasy residue remaining?

If yes, use a damp cloth rinsed in a mild dish soap and water solution to clean the surfaces.

Wipe dry with a clean, soft cloth.

Wear rubber gloves and safety goggles (and/or face shield) when handling Ice Machine Cleaner or Sanitizer.

Open the front door to access the evaporator compartment.

Ensure ice is not on the evaporator during the clean/sanitize cycle. Choose a method to remove ice:

Remove all ice from the bin/dispenser.

Press the clean switch and wait until the water trough refills and the display indicates add solution.

Add the proper amount of ice machine cleaner based on model.

Mix a solution of Manitowoc ice machine cleaner and water (2 ounces of cleaner to 16 ounces of water) in a container

Clean all probe surfaces including all plastic parts (do not use abrasives)

Thoroughly rinse probes with clean water

Ensure you have read and understood all labels on the cleaning and sanitizing bottles.

Ensure you are wearing rubber gloves and safety goggles or face shield.

Ensure the ice machine is turned off and unplugged.

Discard all ice produced during the cleaning and sanitizing procedures.

Disassemble the ice machine and bin for cleaning and sanitizing.

Use Manitowoc Ice Machine Cleaner (part number 9405463) to clean mineral deposits from areas or surfaces in direct contact with water.
