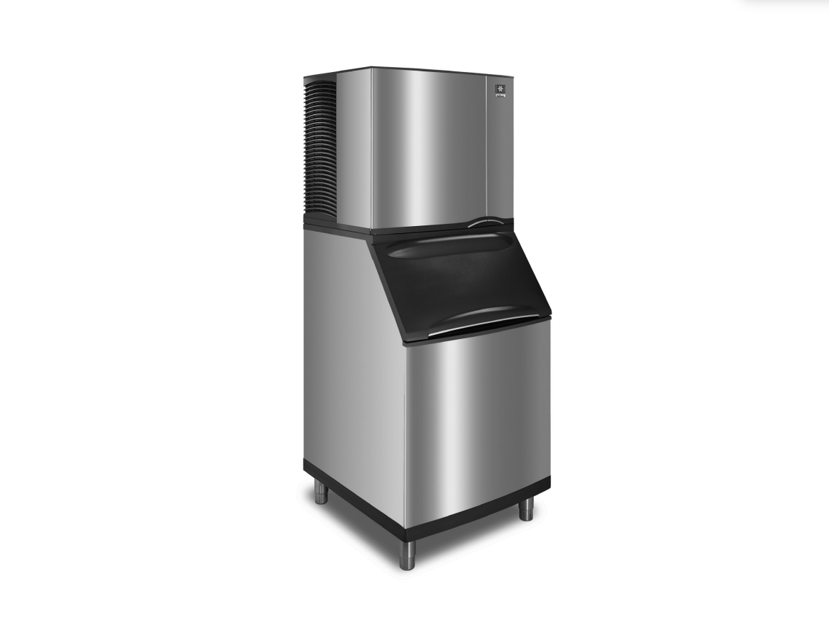

Manitowoc Ice Machine SY1004A

Read and understand all labels printed on Manitowoc Cleaner and Sanitizer bottles

Wear rubber gloves and safety goggles (and/or face shield)

Disassemble the ice machine and bin

Use Manitowoc Ice Machine Cleaner (part number 94-0546-3) to descale the machine

Use Manitowoc Sanitizer (part number 94-0565-3) to sanitize the machine

Ensure that Cleaner/Descaler and Sanitizer solutions are not mixed

Ensure the ice machine is turned off

Disconnect the ice machine from the power supply

Disassemble the following components

Apply descaling solution to all components

Rinse all components thoroughly after descaling

Wear rubber gloves and safety goggles (and/or face shield) when handling Ice Machine Cleaner or Sanitizer.

Ensure Manitowoc approved Ice Machine Cleaner/Descaler and Sanitizer are used.

Remove front door and top cover for access.

Set the toggle switch to the OFF position after ice falls from the evaporator or allow ice to melt off.

Remove all ice from the bin/dispenser.

Place the toggle switch in the CLEAN position and wait for water to flow over the evaporator.

Detailed Descaling and Sanitizing Procedure

Set the toggle switch to the OFF position after ice falls from the evaporator at the end of a Harvest cycle.

Remove top cover for access to descaling and sanitizing solutions.

Place the toggle switch in the CLEAN position and wait for water to flow over the evaporator.

Add the proper amount of ice machine cleaner based on model

Wait until the clean cycle is complete and disconnect power to the ice machine.

Move the ICE/OFF/CLEAN switch to OFF

Disconnect and drain the incoming ice-making water line at the rear of the ice machine

Wait one minute for the water inlet valve to open

Blow compressed air in both the incoming water and the drain openings in the rear of the ice machine to remove all water
