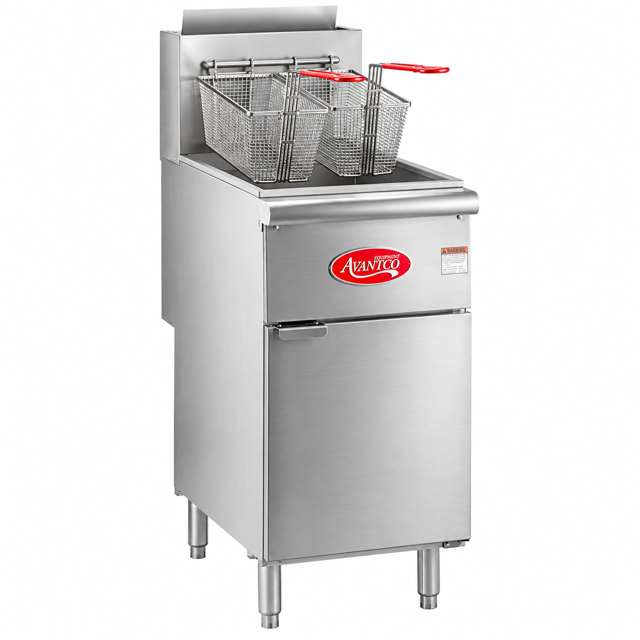

Avantco Floor Fryer FF300-N

Create an account to install this asset package.

Maintenance Plans for Avantco Floor Fryer Model FF300-N

Integrate maintenance plans directly into your work orders in MaintainX.

Thermostat Maintenance

NOTICE: Warranty and Liability

Ensure service work is performed by a qualified technician

Use only approved Avantco replacement parts

WARNING: Qualified Technician Required

Confirm adjustments and service work are performed by a qualified technician

Temperature Check and Calibration

Use a reliable temperature test instrument

Record the temperature in the center of the frypot

Is the temperature stable and identical across readings?

Run this procedure

Main Burner Maintenance

Pre-Maintenance Checks

Is the technician qualified and experienced in commercial gas cooking equipment maintenance?

Are only approved Avantco replacement parts being used?

Main Burner Inspection

Measure the length of the inner cone of the flame from each port

Does the main burner flame burn with a steady blue flame?

Does the flame from each main burner enter each heat tube without touching the front of the frypot or the sides, top, or bottom of each tube?

Post-Maintenance Verification

Was the maintenance performed by a qualified technician?

Run this procedure

Auto Safety Pilot Maintenance

Pre-Maintenance Notice

Verify that service work is performed by a qualified technician.

Ensure only approved Avantco replacement parts are used.

Pilot Flame Adjustment

Remove pilot adjustment cap.

Adjust pilot key to provide properly sized flame as shown in diagram B.

Release pilot adjustment cap.

Pilot Flame Verification

Is the pilot flame surrounding the thermopile for 1/2"?

Run this procedure

Pressure Regulator Maintenance

NOTICE: Warranty and Liability

Ensure service work is performed by a qualified technician.

Use only approved Avantco replacement parts.

WARNING: Qualified Technician Required

Confirm adjustments and service work are performed by a qualified technician.

Manifold Pressure Check

Is the thermostat set to 'OFF' and the gas valve knob to 'PILOT'?

Remove pressure tap plug from burner manifold.

Install fitting to connect a manometer.

Run this procedure

1 Daily Floor Fryer Cleaning

WARNING: BURN HAZARD

If necessary to move the fryer for cleaning, drain oil first to avoid death or serious injury.

If disconnection of the restraint is necessary to move the appliance for cleaning, reconnect it when the appliance is moved to its originally installed position.

Fryer Cleaning Steps

Turn thermostat knob to 'OFF' position.

Place hot-oil safe container under the drain and drain the frypot completely.

Remove the basket support frame (if applicable) and flush out any sediment remaining in the frypot with a little hot oil.

Wipe off the basket support frame and the inside of the frypot with a clean cloth.

Close drain valve and strain the oil back into the frypot through several thicknesses of cheesecloth, or filter it back using a filter machine.

Run this procedure
