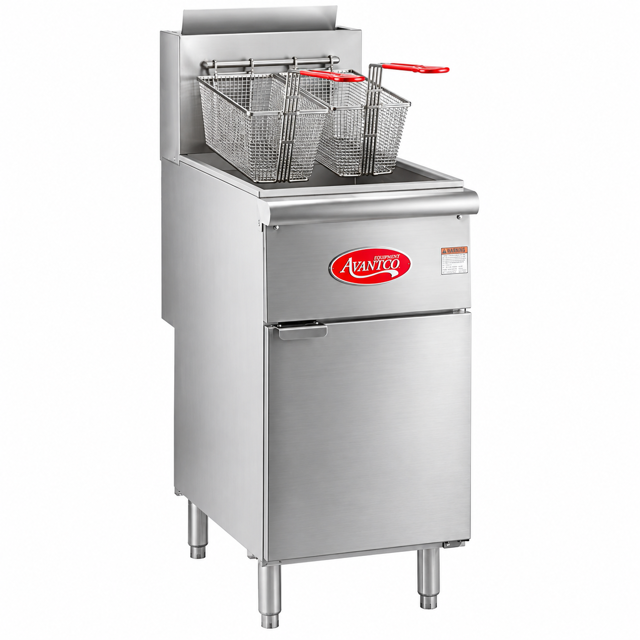

Avantco Floor Fryer FF300-LP

If necessary to move the fryer for cleaning, drain oil first to avoid death or serious injury.

If disconnection of the restraint is necessary to move the appliance for cleaning, reconnect it when the appliance is moved to its originally installed position.

Turn thermostat knob to 'OFF' position.

Place hot-oil safe container under the drain and drain the frypot completely.

Remove the basket support frame (if applicable) and flush out any sediment remaining in the frypot with a little hot oil.

Wipe off the basket support frame and the inside of the frypot with a clean cloth.

Close drain valve and strain the oil back into the frypot through several thicknesses of cheesecloth, or filter it back using a filter machine.

Verify that service work is performed by a qualified technician.

Ensure only approved Avantco replacement parts are used.

Adjust pilot key to provide properly sized flame as shown in diagram B.

Is the pilot flame surrounding the thermopile for 1/2"?

Ensure oil is drained before moving the fryer

Reconnect restraint if disconnected for cleaning

Use ordinary soap and water with a sponge or cloth to clean stainless steel surfaces

Dry thoroughly with a clean cloth

Avoid using vinegar or any corrosive cleaner

Apply cleanser to a damp cloth or sponge and rub in the direction of the polishing lines

Use SCOTCH-BRITE or STAINLESS scouring pads for stubborn soil and burnt deposits

Ensure oil is drained before moving the fryer to avoid burn hazards.

Reconnect the restraint if it was disconnected for cleaning.

Turn thermostat knob to 'OFF' position.

Place hot-oil safe container under the drain and drain the frypot completely.

Remove the basket support frame and flush out any sediment with hot oil.

Wipe off the basket support frame and the inside of the frypot with a clean cloth.

Ensure service work is performed by a qualified technician.

Use only approved Avantco replacement parts.

WARNING: Qualified Technician Required

Confirm adjustments and service work are performed by a qualified technician.

Contact Avantco Service Representative for assistance and genuine factory parts.

Temperature Check and Calibration

Record the temperature using a thermocouple-type temperature test instrument or reliable thermometer.

Enter the temperature setting requiring the greatest accuracy.
