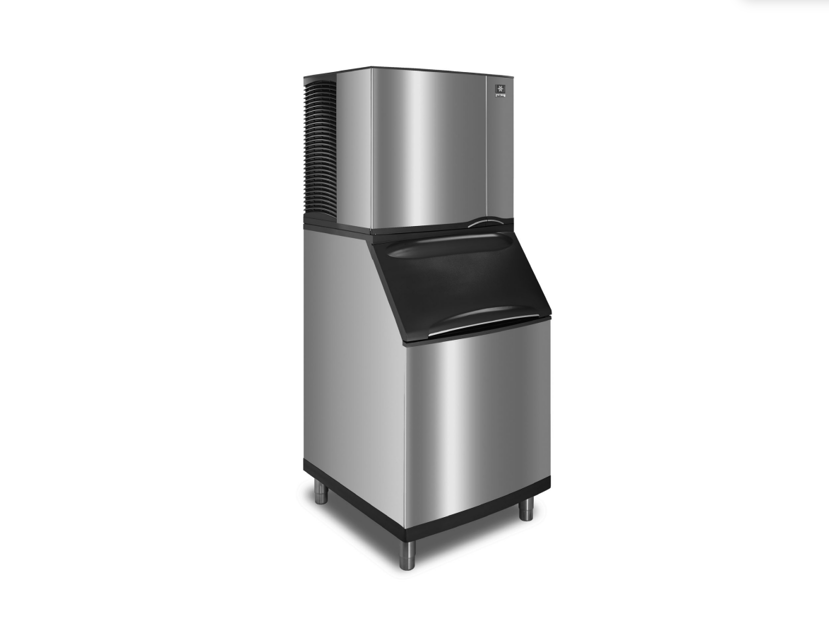

Manitowoc Ice Machine SD0852A

Ensure the ice machine is turned off

Disconnect the ice machine from the power source

Disassemble the following components

Apply descaling solution to the ice machine components

Rinse all components thoroughly after descaling

Ensure you have the necessary safety equipment and cleaning products

Read and understand all labels printed on the cleaning and sanitizing bottles

Confirm that the ice machine is turned off and unplugged

Disassemble the ice machine and bin for cleaning

Remove mineral deposits from areas or surfaces in direct contact with water

Clean all disassembled parts with Manitowoc Ice Machine Cleaner

Set the toggle switch to the OFF position after ice falls from the evaporator or allow the ice to melt off the evaporator.

Remove top cover for access to add descaling and sanitizing solutions.

Place the toggle switch in the CLEAN position and wait for the water trough to refill.

Add the proper amount of ice machine cleaner based on model

Wait until the clean cycle is complete and disconnect power to the ice machine.

Remove parts for cleaning as per the ice machine model.

Move the ICE/OFF/CLEAN switch to OFF

Disconnect and drain the incoming ice-making water line at the rear of the ice machine

Energize the ice machine and wait one minute for the water inlet valve to open

Blow compressed air in both the incoming water and the drain openings in the rear of the ice machine to remove all water

Disconnect electric power to the ice machine head section and the remote condensing unit at the electric service switches.

Condenser Inspection and Cleaning

Inspect condenser fins for dirt using a flashlight.

Is there visible dirt between the condenser fins?

Choose cleaning method for condenser fins

Is the condenser clean after using compressed air or water?

Call a service agent if dirt still remains after cleaning attempts.
