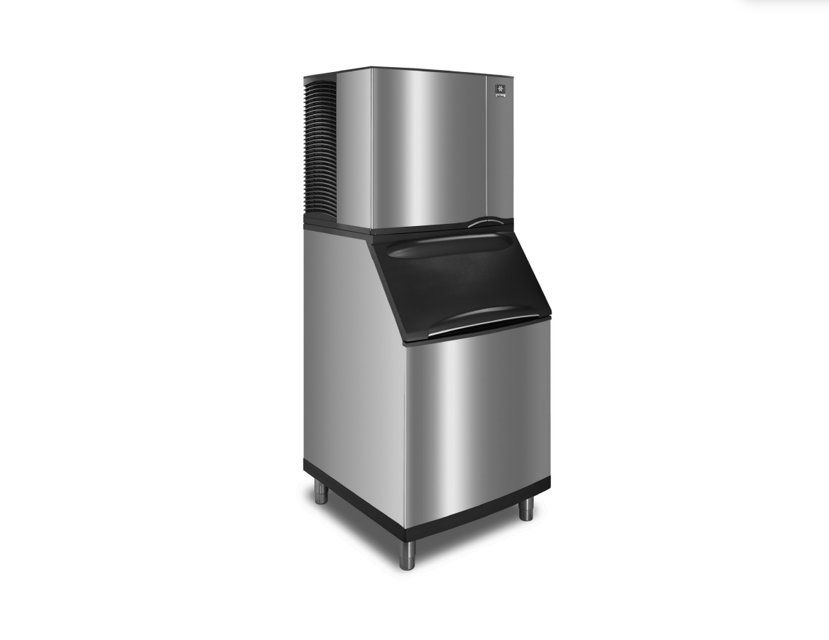

Manitowoc Ice Machine SD1202A

Remove parts for cleaning/sanitizing

Multiple Evaporator Ice Machines

Remove parts for cleaning/sanitizing

Read and understand all labels printed on Manitowoc Cleaner and Sanitizer bottles

Wear rubber gloves and safety goggles (and/or face shield)

Disassemble the ice machine and bin

Use Manitowoc Ice Machine Cleaner (part number 94-0546-3) to descale the machine

Use Manitowoc Sanitizer (part number 94-0565-3) to sanitize the machine

Ensure that Cleaner/Descaler and Sanitizer solutions are not mixed

Move the ICE/OFF/CLEAN switch to OFF

Disconnect and drain the incoming ice-making water line at the rear of the ice machine

Wait one minute for the water inlet valve to open

Blow compressed air in both the incoming water and the drain openings in the rear of the ice machine to remove all water

Wear rubber gloves and safety goggles (and/or face shield) when handling Ice Machine Cleaner or Sanitizer.

Ensure Manitowoc approved Ice Machine Cleaner/Descaler and Sanitizer are used.

Remove front door and top cover for access.

Set the toggle switch to the OFF position after ice falls from the evaporator or allow ice to melt off.

Remove all ice from the bin/dispenser.

Place the toggle switch in the CLEAN position and wait for water to flow over the evaporator.

Disconnect electric power to the ice machine head section and the remote condensing unit at the electric service switches

Condenser Inspection and Cleaning

Inspect condenser fins for dirt using a flashlight

Is there visible dirt between the condenser fins?

Is the condenser clean after using compressed air or water?

Call a service agent if dirt remains after cleaning attempts
