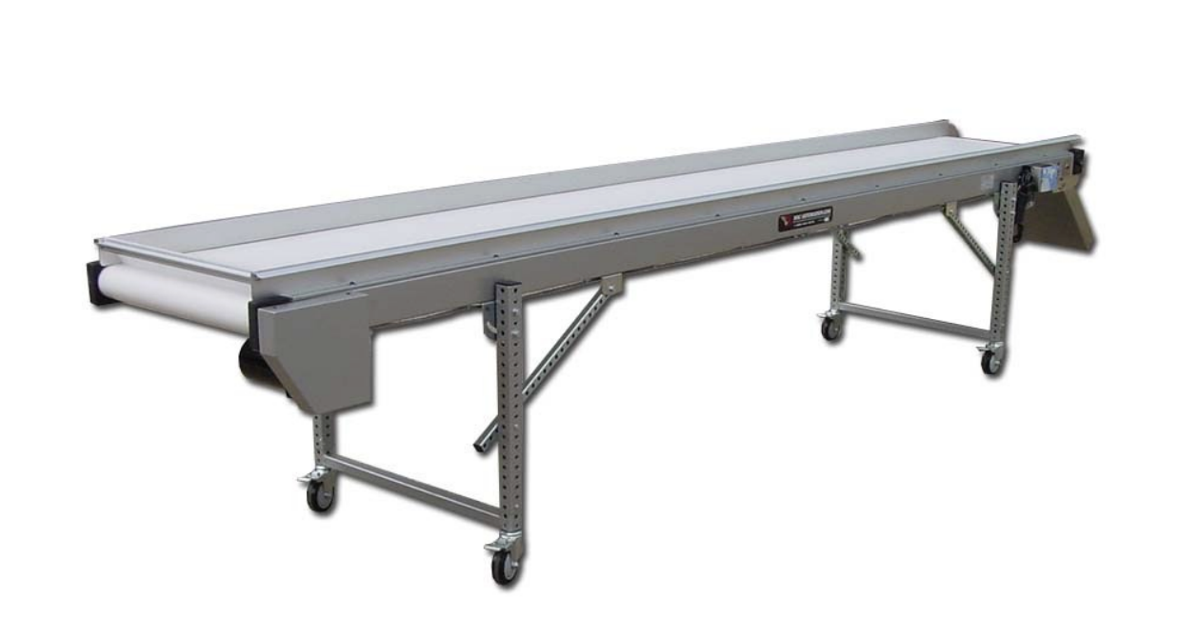

MAC Automation Concepts Conveyor LF-20-36

Square up drive pulley with frame

Install belt according to assembly instructions guide

Centre the belt on the idle pulley

Tighten up the idle pulley and maintain belt centre

If belt tracks off centre of idle pulley, tighten the take-up on the side the belt is running toward as shown in the belt tracking diagram

Check for foreign objects inside the conveyor

Warn all personnel in the area that the conveyor is about to start

Check if motors are working properly

Check if reducers are operating correctly

Ensure all moving parts are functioning freely

Monitor the belt for a short period of time to ensure nothing has loosened up during shipment

Is the belt centred on the pulleys?

Ensure the conveyor is turned off and locked out

Gather necessary tools and materials (Mobil 600W lubricant, wrench, oil pan, etc.)

Place an oil pan under the gear reducer

Remove the drain plug and allow old oil to completely drain out

Reinstall the drain plug securely

Fill the gear reducer with Mobil 600W lubricant to the recommended level

Ensure the conveyor is turned off and locked out

Gather necessary tools and materials (e.g., Mobil 600W lubricant, wrenches, oil pan)

Place an oil pan under the gear reducer

Remove the drain plug and allow old oil to completely drain out

Reinstall the drain plug securely

Fill the gear reducer with Mobil 600W lubricant to the recommended level
