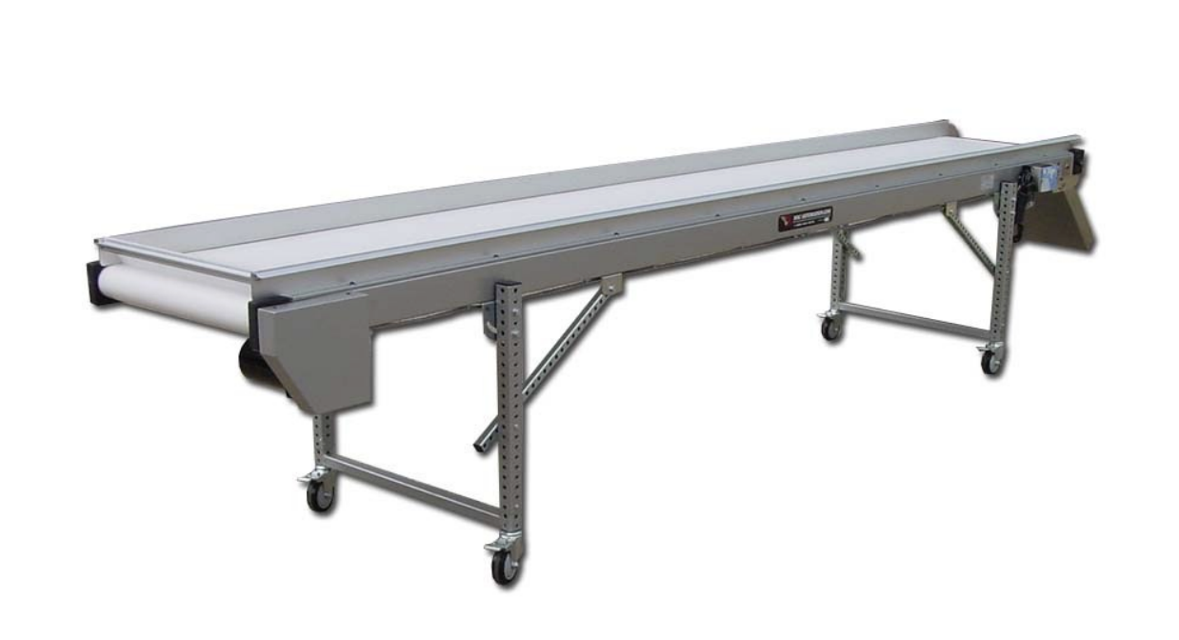

MAC Automation Concepts Conveyor LF-16-30

Ensure the conveyor is turned off and locked out

Gather necessary tools and materials

Apply quality chain lubricant to the chain

Apply quality chain lubricant to the sprockets

Is the lubrication evenly applied across all parts?

Square up drive pulley with frame

Install belt according to assembly instructions guide

Centre the belt on the idle pulley

Tighten up the idle pulley and maintain belt centre

If belt tracks off centre of idle pulley, tighten the take-up on the side the belt is running toward as shown in the belt tracking diagram

Ensure conveyor is running to specifications

Check all safety features and devices

Check motors, reducers, and all moving parts

Are all moving parts working properly and freely?

Check for foreign objects on the conveyor

Inspect for build-up on pulleys

Check for foreign objects inside the conveyor

Warn all personnel in the area that the conveyor is about to start

Is the conveyor operating smoothly?

Check that all components are working properly

Inspect if the belt is tracking centred on the pulleys

Is the belt tracking off centre at the idle pulley?

Loosen the 3/8-16 B.H.C.S. (x2)

Insert belt tension tool into the 3/8-16 knurled nut

Adjust the knurled nut to move the casting in or out of the frame
