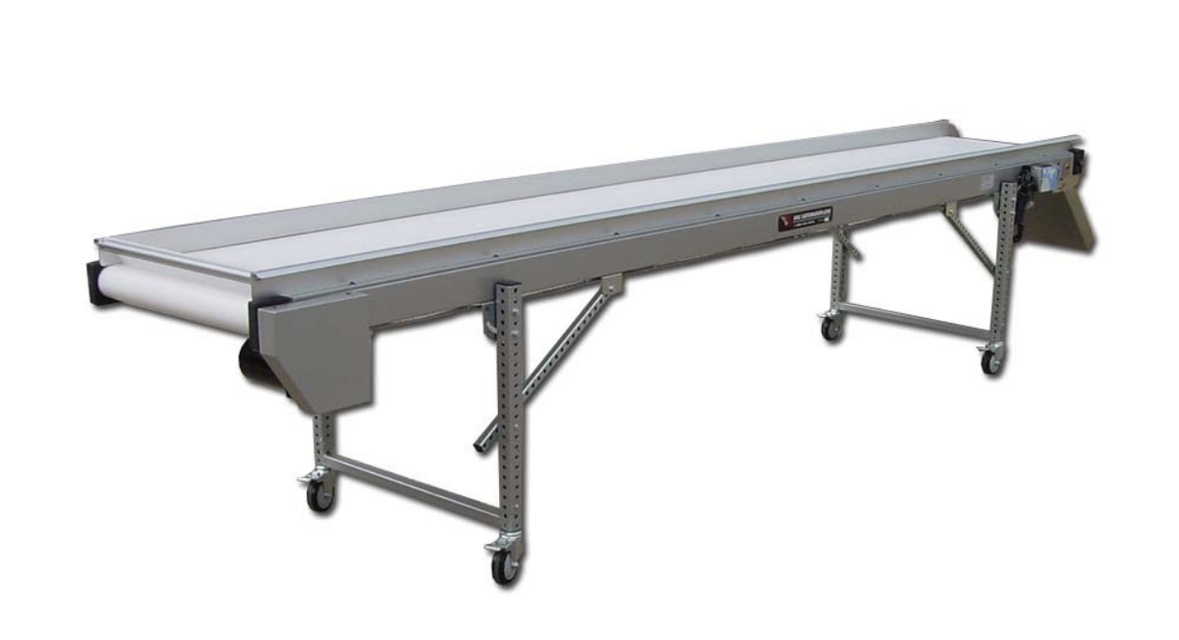

MAC Automation Concepts Conveyor LF-12-24
Create an account to install this asset package.
Maintenance Plans for MAC Automation Concepts Conveyor Model LF-12-24
Integrate maintenance plans directly into your work orders in MaintainX.
Initial Belt Maintenance
Square up drive pulley with frame
Install belt according to assembly instructions guide
Centre the belt on the idle pulley
Tighten up the idle pulley and maintain belt centre
Turn on power
If belt tracks off centre of idle pulley, tighten the take-up on the side the belt is running toward as shown in the belt tracking diagram
Post installation check
Verify belt alignment
Check for unusual noises
4 Weekly Chain Sprocket Lubrication
Preparation
Ensure the conveyor is turned off and locked out
Gather necessary tools and materials
Lubrication Process
Identify parts to lubricate
Apply quality chain lubricant to the chain
Apply quality chain lubricant to the sprockets
Post-Lubrication Check
Is the lubrication evenly applied to all parts?
Initial 250 Hours Gear Reducer Oil Change
Preparation
Ensure the conveyor is turned off and locked out
Gather necessary tools and materials (e.g., Mobil 600W lubricant, wrenches, oil pan)
Oil Drainage
Place an oil pan under the gear reducer
Remove the oil drain plug and allow old oil to completely drain out
Oil Replacement
Reinstall the oil drain plug securely
Fill the gear reducer with Mobil 600W lubricant to the recommended level
Routine Belt Tracking Check
Belt Inspection
Inspect if the belt is tracking centred on the pulleys
Adjustment Procedure
Is the belt tracking off centre at the idle pulley?
Adjust Belt Tension
Loosen the 3/8-16 B.H.C.S. (x2)
Insert belt tension tool into the 3/8-16 knurled nut
Adjust the knurled nut to move the casting
Check belt tension effects
2500 Hourly / 6 Monthly Gear Reducer Oil Change
Preparation
Ensure the conveyor is turned off and locked out
Gather necessary tools and materials (e.g., Mobil 600W lubricant, wrenches, oil pan)
Oil Drainage
Place an oil pan under the gear reducer
Remove the oil drain plug and allow old oil to completely drain out
Oil Replacement
Reinstall the oil drain plug securely
Fill the gear reducer with Mobil 600W lubricant to the recommended level
Unlock efficiency
with MaintainX CoPilot
MaintainX CoPilot is your expert colleague, on call 24/7, helping your team find the answers they need to keep equipment running.
