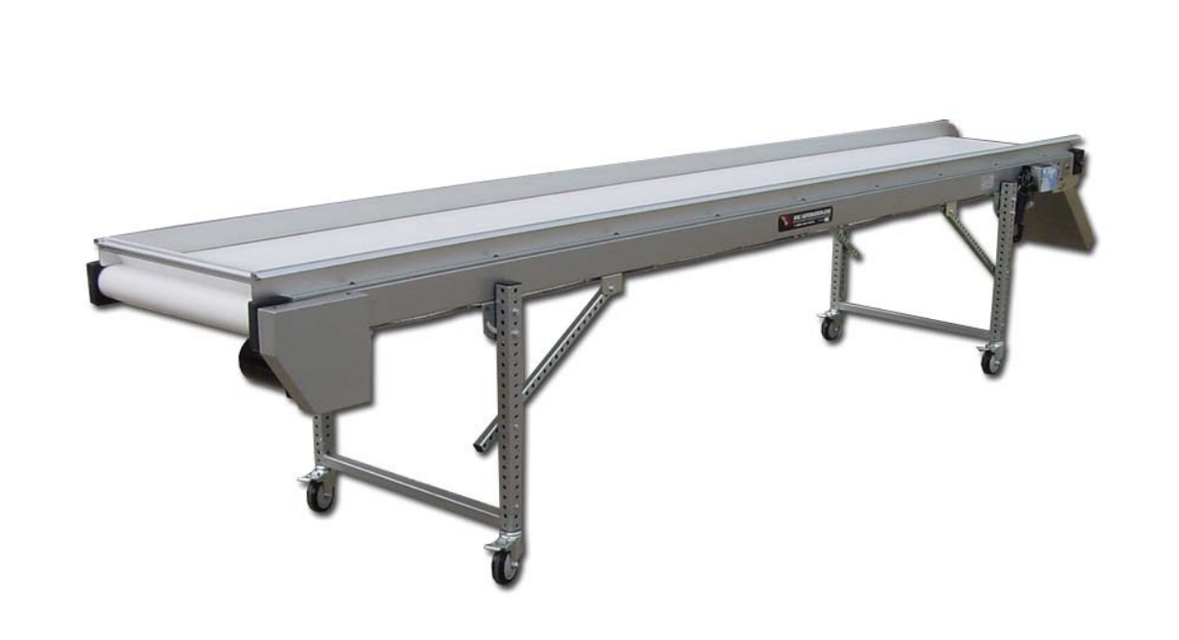

MAC Automation Concepts Conveyor LF-5-6

Ensure the conveyor is turned off and locked out

Gather necessary tools and materials (e.g., Mobil 600W lubricant, wrenches, oil pan)

Place an oil pan under the gear reducer

Remove the drain plug and allow old oil to completely drain out

Reinstall the drain plug securely

Fill the gear reducer with Mobil 600W lubricant to the specified level

Confirm motor type at commissioning

Ensure no external lubrication is applied

Applicable to conveyors equipped with an Integral Gear Motor

Verify that the unit is designed for round-the-clock use

Confirm that the gear case uses semi-fluid grease

Ensure no change of lubricant is required as the unit is lubricated for life

Describe the conveyor operating environment

Ensure the following parts are ready for lubrication

Apply quality chain lubricant to the chain

Apply quality chain lubricant to the sprockets

Is the lubrication evenly applied across all parts?

Check for any excess lubricant and clean if necessary

Inspect if the belt is tracking centred on the pulleys

Is the belt tracking off centre at the idle pulley?

Did you increase tension on one side?

Did you decrease tension on one side?

Ensure the belt is not over-tensioned

Gather all required tools: rubber mallet, two 9/16 wrenches, 7/32 hex key, 5/32 hex key, 1/8 hex key, belt tension tool

Disconnect all power from conveyor

Loosen both casting bolts using 7/32 hex key

Release tension on belt using belt tension tool

Remove left eccentric collar using a 1/8 hex key

Remove two 1/4-20 B.H.C.S. from splice assembly using 5/32 hex key

Remove splice assembly by gently tapping with rubber mallet in direction of arrow
