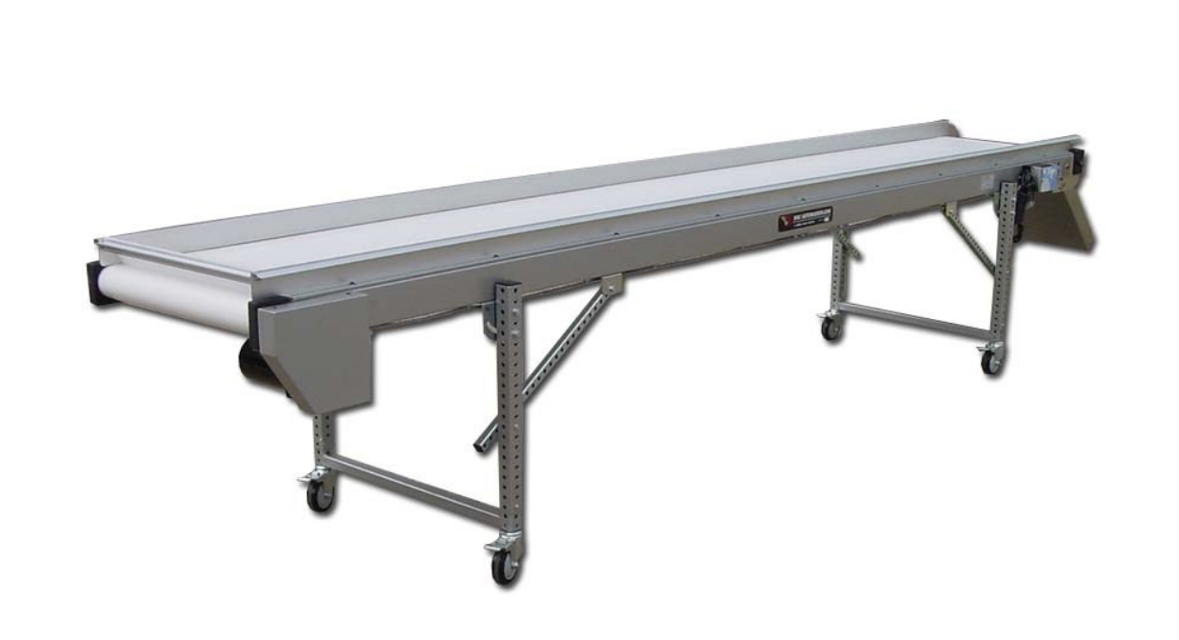

MAC Automation Concepts Conveyor LF-8-18

Square up drive pulley with frame

Install belt according to assembly instructions guide

Centre the belt on the idle pulley

Tighten up the idle pulley and maintain belt centre

If belt tracks off centre of idle pulley, tighten the take-up on the side the belt is running toward as shown in the belt tracking diagram

Check that all the parts are in place

Is the belt tension within the recommended range?

Chain Sprocket Lubrication Procedure

Ensure the conveyor is turned off and locked out for safety

Gather necessary tools and materials (chain lubricant, cleaning cloths, etc.)

Clean the chain and sprockets to remove any debris or old lubricant

Apply a quality chain lubricant to the chain and sprockets

Is the lubricant applied evenly across all parts of the chain and sprockets?

Ensure the conveyor is turned off and locked out

Gather necessary tools and materials (e.g., Mobil 600W lubricant, wrenches, oil pan)

Place an oil pan under the gear reducer

Remove the drain plug and allow old oil to completely drain out

Reinstall the drain plug securely

Fill the gear reducer with Mobil 600W lubricant to the recommended level

Ensure conveyor is running to specifications

Check all safety features and devices

Inspect motors, reducers, and all moving parts

Check for foreign objects on the conveyor

Inspect for build-up on pulleys

Check for material accumulation affecting belt tracking

Confirm motor type at commissioning

Ensure no external lubrication is applied

Verify that the unit is lubricated for life with semi-fluid grease

Check that all the parts are in place

Is the conveyor equipped with an Integral Gear Motor?
