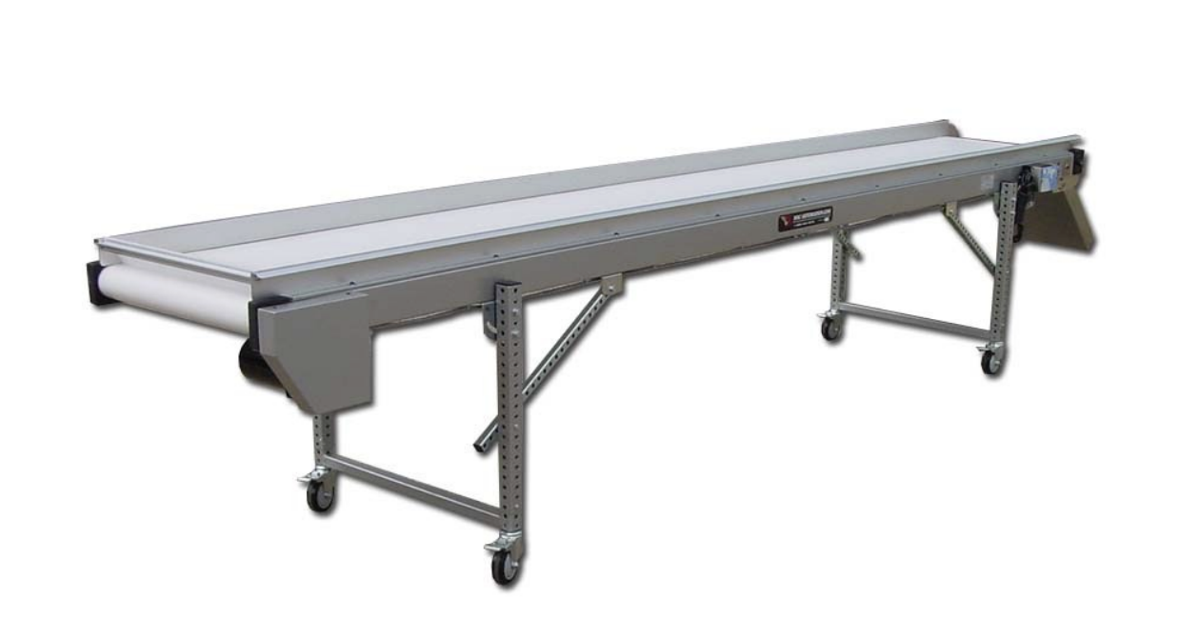

MAC Automation Concepts Conveyor LF-6-18

Ensure the conveyor is turned off and locked out

Gather necessary tools and materials (Mobil 600W lubricant, wrench, oil pan, etc.)

Place an oil pan under the gear reducer

Remove the drain plug and allow old oil to completely drain out

Reinstall the drain plug securely

Fill the gear reducer with Mobil 600W lubricant to the recommended level

Check for foreign objects inside the conveyor

Is the conveyor operating smoothly?

Check that all components are working properly

Describe the operating environment of the conveyor

Ensure the following items are ready

Clean the chain and sprockets before lubrication

Apply lubricant to the sprockets

Is the lubrication evenly applied?

Gather all required tools: rubber mallet, two 9/16 wrenches, 7/32 hex key, 5/32 hex key, 1/8 hex key, belt tension tool

Disconnect all power from conveyor

Loosen both casting bolts using 7/32 hex key

Release tension on belt using belt tension tool

Remove left eccentric collar using a 1/8 hex key

Remove two 1/4-20 B.H.C.S. from splice assembly using 5/32 hex key

Remove splice assembly by gently tapping with rubber mallet in direction of arrow

Confirm motor type at commissioning

Ensure no external lubrication is applied

Verify that the unit is lubricated for life

Check that all the parts are in place
