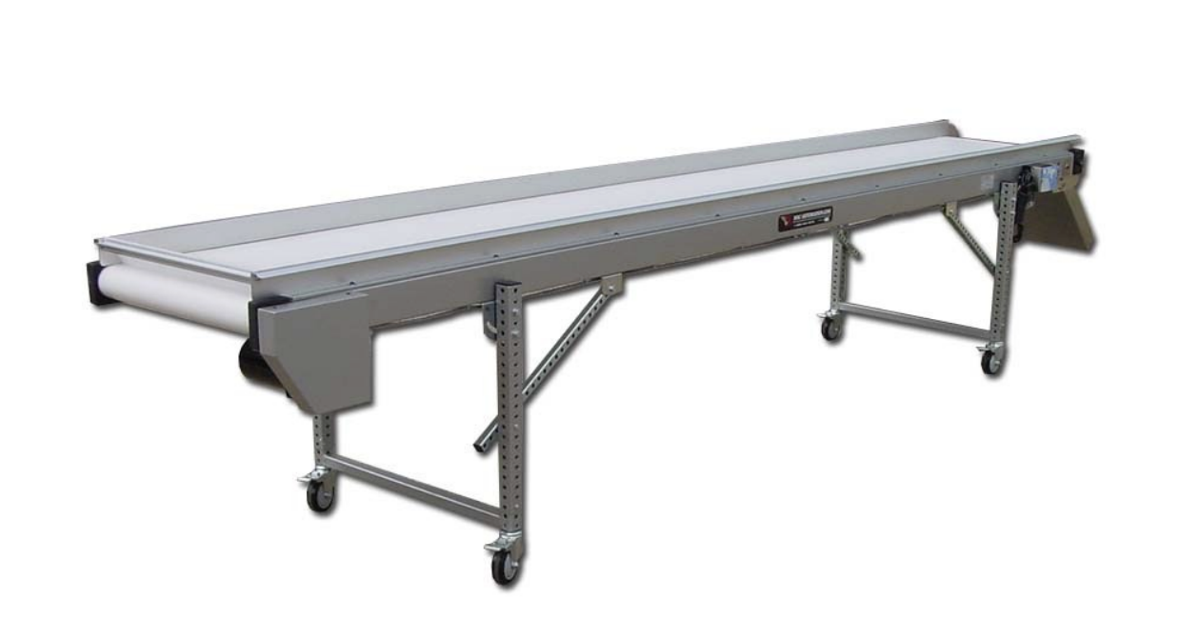

MAC Automation Concepts Conveyor LF-6-12

Ensure all safety features and devices are functioning properly

Check motors, reducers, and all moving parts

Are all moving parts working properly and freely?

Check for any foreign objects on the conveyor belt

Inspect for build-up on pulleys

Check for material accumulation affecting belt tracking

Is the belt moving smoothly without any unusual noises?

Is the belt remaining centered on the pulleys?

Check for any signs of loosening during shipment

Is the belt tracking correctly after initial power up?

Describe any issues observed during the initial belt tracking check

Gather all required tools: rubber mallet, two 9/16 wrenches, 7/32 hex key, 5/32 hex key, 1/8 hex key, belt tension tool

Disconnect all power from conveyor

Loosen both casting bolts using 7/32 hex key

Release tension on belt using belt tension tool

Remove left eccentric collar using a 1/8 hex key

Remove two 1/4-20 B.H.C.S. from splice assembly using 5/32 hex key

Remove splice assembly by gently tapping with rubber mallet in direction of arrow

Inspect if the belt is tracking centred on the pulleys

Is the belt tracking off centre at the idle pulley?

Did you increase tension on one side?

Did you decrease tension on one side?

Ensure the belt is not over-tensioned

Ensure the conveyor is turned off and locked out

Gather necessary tools and materials

Apply quality chain lubricant to the chain

Apply quality chain lubricant to the sprockets

Is the lubrication evenly applied across all parts?
