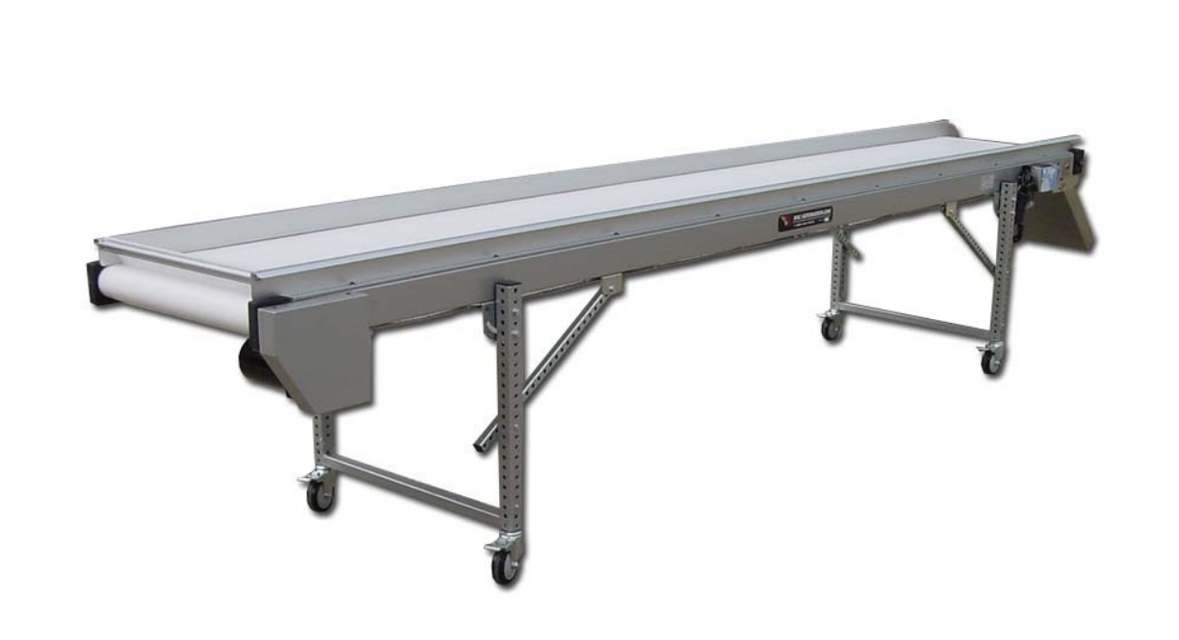

MAC Automation Concepts Conveyor LF-8-6

Ensure the conveyor is turned off and locked out

Gather necessary tools and materials (e.g., Mobil 600W lubricant, wrenches, oil pan)

Place an oil pan under the gear reducer

Remove the oil drain plug and allow old oil to completely drain out

Reinstall the oil drain plug securely

Fill the gear reducer with Mobil 600W lubricant to the recommended level

Ensure the conveyor is turned off and locked out

Gather necessary tools and materials, including Mobil 600W lubricant

Place a container under the oil drain plug to catch old oil

Remove the oil drain plug and allow the old oil to completely drain out

Reinstall the oil drain plug securely

Fill the gear reducer with Mobil 600W lubricant to the recommended level

Gather required tools: rubber mallet, two 9/16 wrenches, 7/32 hex key, 5/32 hex key, 1/8 hex key, belt tension tool

Disconnect all power from conveyor

Loosen both casting bolts using 7/32 hex key

Release tension on belt using belt tension tool

Remove left eccentric collar using a 1/8 hex key

Remove two 1/4-20 B.H.C.S. from splice assembly using 5/32 hex key

Remove splice assembly by gently tapping with rubber mallet in direction of arrow

Verify that the conveyor is shipped completely assembled with belt installed

Is the belt operating smoothly without any unusual noises?

Is the belt remaining centered on the pulleys?

Describe any issues observed during the belt operation

Inspect if the belt is tracking centred on the pulleys

Is the belt tracking off centre at the idle pulley?

Loosen the 3/8-16 B.H.C.S. (x2)

Insert belt tension tool into the 3/8-16 knurled nut

Adjust the knurled nut to move the casting
