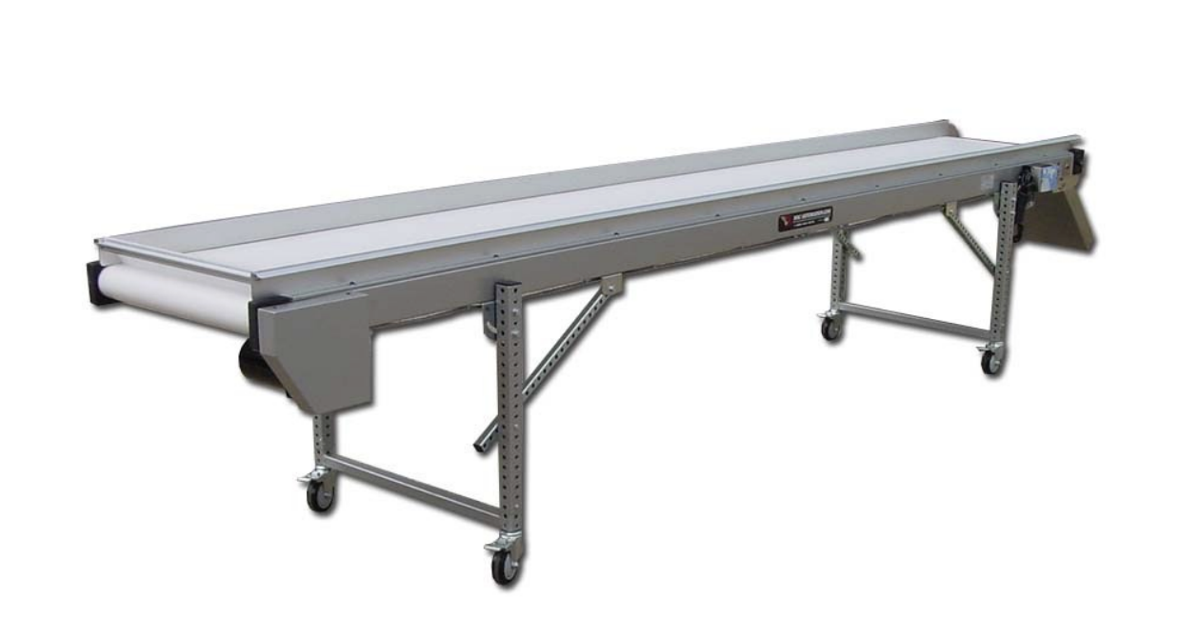

MAC Automation Concepts Conveyor LF-10-12
Create an account to install this asset package.
Maintenance Plans for MAC Automation Concepts Conveyor Model LF-10-12
Integrate maintenance plans directly into your work orders in MaintainX.
Initial 250 Hours Gear Reducer Oil Change
Preparation
Ensure the conveyor is turned off and locked out
Gather necessary tools and materials (e.g., Mobil 600W lubricant, wrenches, oil pan)
Oil Drainage
Place an oil pan under the gear reducer
Remove the drain plug and allow old oil to completely drain out
Oil Replacement
Reinstall the drain plug securely
Fill the gear reducer with Mobil 600W lubricant to the recommended level
2500 Hourly / 6 Monthly Gear Reducer Oil Change
Preparation
Ensure the conveyor is turned off and locked out
Gather necessary tools and materials (e.g., Mobil 600W lubricant, wrenches, oil pan)
Oil Drainage
Place an oil pan under the gear reducer
Remove the drain plug and allow old oil to completely drain out
Oil Replacement
Reinstall the drain plug securely
Fill the gear reducer with Mobil 600W lubricant to the recommended level
Initial Integral Gear Motor Inspection
Motor Type Confirmation
Confirm motor type at commissioning
Lubrication Check
Ensure no external lubrication is applied
General Information
Applicable to conveyors equipped with an Integral Gear Motor
Initial Belt Maintenance
Square up drive pulley with frame
Install belt according to assembly instructions guide
Centre the belt on the idle pulley
Tighten up the idle pulley and maintain belt centre
Turn on power
If belt tracks off centre of idle pulley, tighten the take-up on the side the belt is running toward as shown in the belt tracking diagram
Post installation check
Verify belt alignment
Check for any unusual noises
4 Weekly Chain Sprocket Lubrication
Chain Sprocket Lubrication Procedure
Preparation
Ensure the conveyor is turned off and locked out
Gather necessary tools and materials
Lubrication Process
Inspect the chain and sprockets for wear and damage
Clean the chain and sprockets
Apply lubricant to the chain and sprockets
Post-Lubrication
