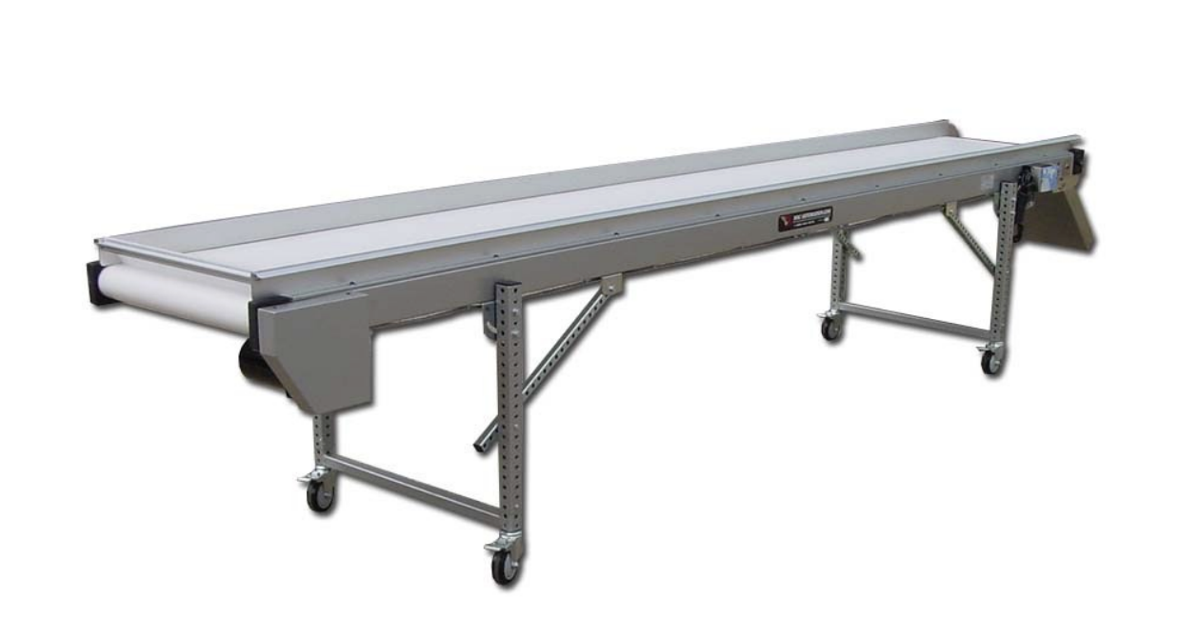

MAC Automation Concepts Conveyor LF-10-18

Ensure the conveyor is turned off and locked out

Gather necessary tools and materials (Mobil 600W lubricant, wrench, oil pan, etc.)

Place an oil pan under the gear reducer

Remove the drain plug and allow old oil to completely drain out

Inspect the drain plug and replace if damaged

Reinstall the drain plug securely

Disconnect all power from conveyor

Remove two 1/4-20 B.H.C.S. from splice assembly

Remove right side rail or right side conveyor cover

Unbolt variable speed control if applicable

Check for foreign objects inside the conveyor

Warn all personnel in the area that the conveyor is about to start

Is the conveyor operating smoothly?

Check that all components are working properly

Ensure conveyor is running to specifications

Check all safety features and devices

Inspect motors, reducers, and moving parts

Check for foreign objects on the conveyor

Inspect for build-up on pulleys

Check for material accumulation affecting belt tracking

Inspect the belt to confirm it is tracking centred on the pulleys

Is the belt tracking off centre at the idle pulley?

Tighten the take-up on the side toward which the belt is running

Loosen the 3/8-16 B.H.C.S. (x2)

Insert belt tension tool into the 3/8-16 knurled nut
