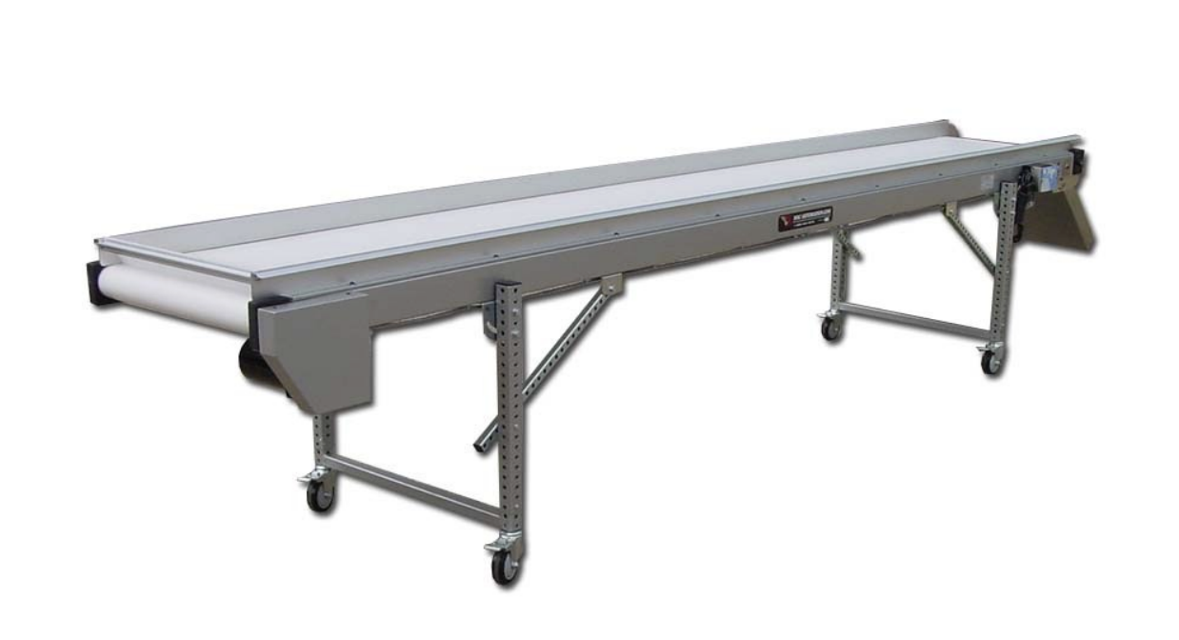

MAC Automation Concepts Conveyor LF-3-6

Ensure the conveyor is turned off and locked out

Gather necessary tools and materials (e.g., Mobil 600W lubricant, wrenches, oil pan)

Place an oil pan under the gear reducer

Remove the oil drain plug and allow the old oil to completely drain out

Reinstall the oil drain plug securely

Fill the gear reducer with Mobil 600W lubricant to the specified level

Disconnect all power from conveyor

Remove two 1/4-20 B.H.C.S. from splice assembly

Remove right side rail or right side conveyor cover

Unbolt variable speed control if applicable

Ensure the conveyor is turned off and locked out for safety

Gather necessary tools and materials, including Mobil 600W lubricant

Place a suitable container under the gear reducer to catch old oil

Remove the drain plug and allow the old oil to completely drain out

Inspect the drain plug and replace it if necessary

Reinstall the drain plug securely

Confirm motor type at commissioning

Ensure no external lubrication is applied

Verify the following components are in place and secure

Ensure conveyor is running to specifications

Check all safety features and devices

Inspect motors, reducers, and all moving parts

Check for foreign objects on the conveyor

Inspect for build-up on pulleys

Check for material accumulation affecting belt tracking
