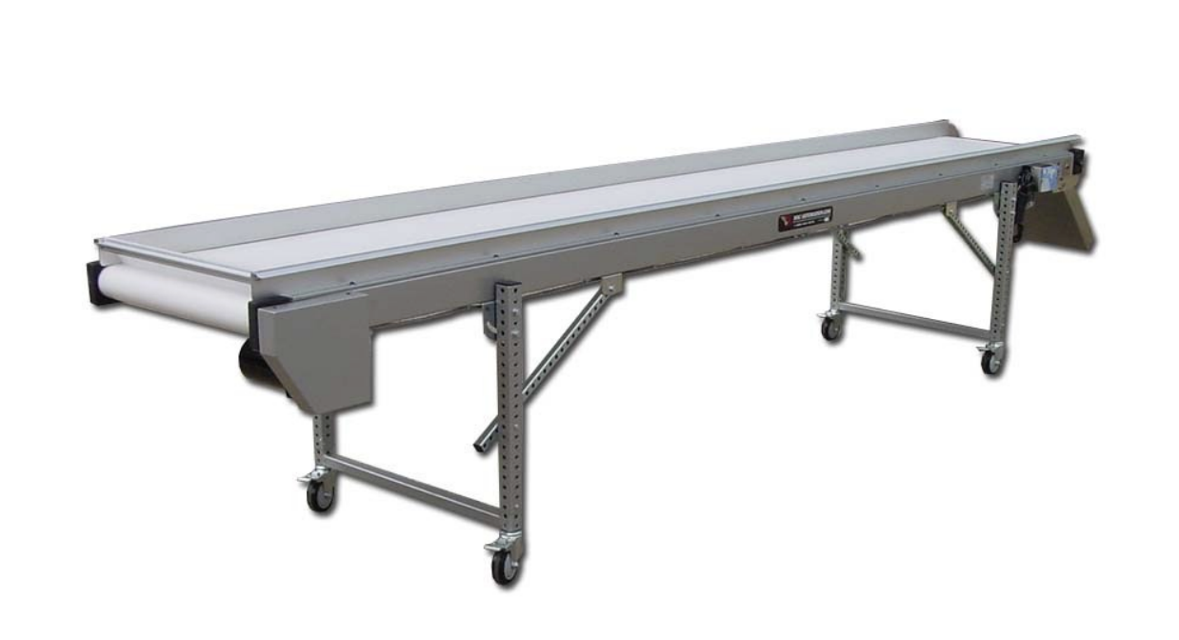

MAC Automation Concepts Conveyor LF-8-12

Square up drive pulley with frame

Install belt according to assembly instructions guide

Centre the belt on the idle pulley

Tighten up the idle pulley and maintain belt centre

If belt tracks off centre of idle pulley, tighten the take-up on the side the belt is running toward as shown in the belt tracking diagram

Check for unusual noises during operation

Ensure conveyor is running to specifications

Check all safety features and devices

Inspect motors, reducers, and moving parts

Are all moving parts working properly and freely?

Check for foreign objects on the conveyor

Inspect for build-up on pulleys

Check for material accumulation affecting belt tracking

Ensure the conveyor is turned off and locked out

Gather necessary tools and materials (e.g., Mobil 600W lubricant, wrenches, oil pan)

Place an oil pan under the gear reducer

Remove the drain plug and allow old oil to completely drain out

Reinstall the drain plug securely

Fill the gear reducer with Mobil 600W lubricant to the recommended level

Ensure the conveyor is turned off and locked out

Gather necessary tools and materials (e.g., Mobil 600W lubricant, wrenches, oil pan)

Place an oil pan under the gear reducer

Remove the drain plug and allow old oil to completely drain out

Reinstall the drain plug securely

Fill the gear reducer with Mobil 600W lubricant to the specified level

Monitor the belt for a short period of time to ensure nothing has loosened up during shipment

Is the belt remaining centred on the pulleys?
