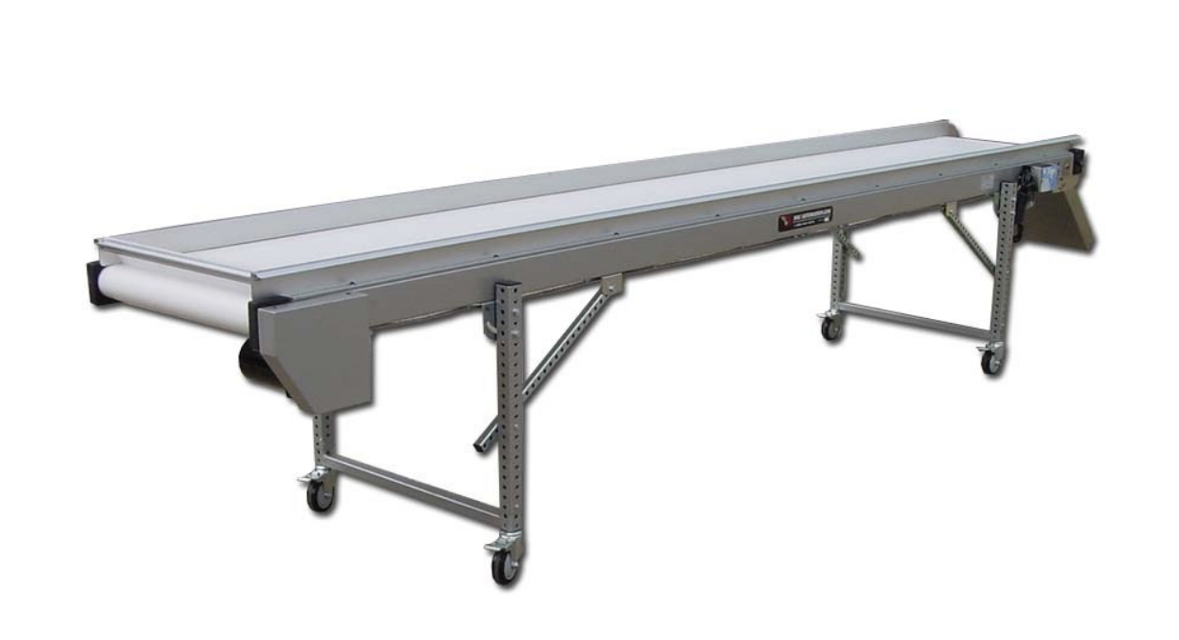

MAC Automation Concepts Conveyor LF-14-24

Ensure the conveyor is turned off and locked out

Gather necessary tools and materials (e.g., Mobil 600W lubricant, wrenches, oil pan)

Place an oil pan under the gear reducer

Remove the drain plug and allow old oil to completely drain out

Inspect the drain plug and replace if damaged

Reinstall the drain plug securely

Square up drive pulley with frame

Install belt according to assembly instructions guide

Centre the belt on the idle pulley

Tighten up the idle pulley and maintain belt centre

If belt tracks off centre of idle pulley, tighten the take-up on the side the belt is running toward as shown in the belt tracking diagram

Is the belt moving smoothly without any unusual noises?

Is the belt remaining centered on the pulleys?

Check for any signs of loosening during shipment

Describe any issues observed during the check

Ensure the conveyor is turned off and locked out for safety

Gather necessary tools and materials (chain lubricant, cleaning cloths, etc.)

Clean the chain and sprockets to remove any debris or old lubricant

Apply a quality chain lubricant to the chain and sprockets

Is the lubricant applied evenly across all parts?

Ensure the conveyor is turned off and locked out

Gather necessary tools and materials (e.g., Mobil 600W lubricant, wrenches, oil pan)

Place an oil pan under the gear reducer

Remove the oil drain plug and allow old oil to completely drain out

Reinstall the oil drain plug securely

Fill the gear reducer with Mobil 600W lubricant to the recommended level
