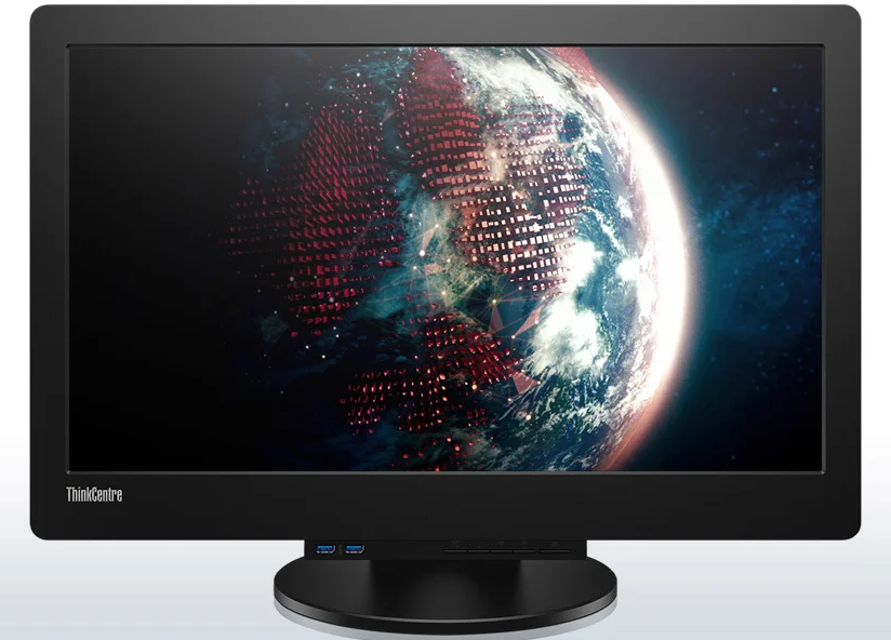

Lenovo Tiny-in-One Monitor TinyinOne23

Disconnect the power cords from electrical outlets

Disconnect all cables connected to the monitor and computer

Pivot the optical drive bay cover to the right to open it

Slide the optical drive to the left to remove it from the monitor

Disconnect the optical drive cable from the USB connector on the computer

Remove the optical drive from the bay

Pull out the latch that secures the stand before adjusting the height

Read the instructions on the label of the latch

Adjust the height of the monitor stand

Slide the latch to the right to open the cable cover

Pivot the rear Wi-Fi antenna downward at an angle of about 90°

Hold the thicker end of the rear Wi-Fi antenna

Unscrew the antenna from the computer

Note any issues encountered during removal

Place a soft, clean towel or cloth on the desk or surface.

Hold the sides of your monitor and gently lay it down so that the screen is against the surface and the cover is facing up.

Dig the two rubber cushions out with something pointed.

Remove two screws covered by the two rubber cushions.

Remove the full-function monitor stand.

Optional VESA Mount Installation

Do you want to hang your monitor on the wall?

Turn off the power before performing maintenance

Ensure the following actions are not performed

Lightly dampen a soft cloth with water to wipe the covers and screen

Remove grease or finger marks with a damp cloth and mild detergent
