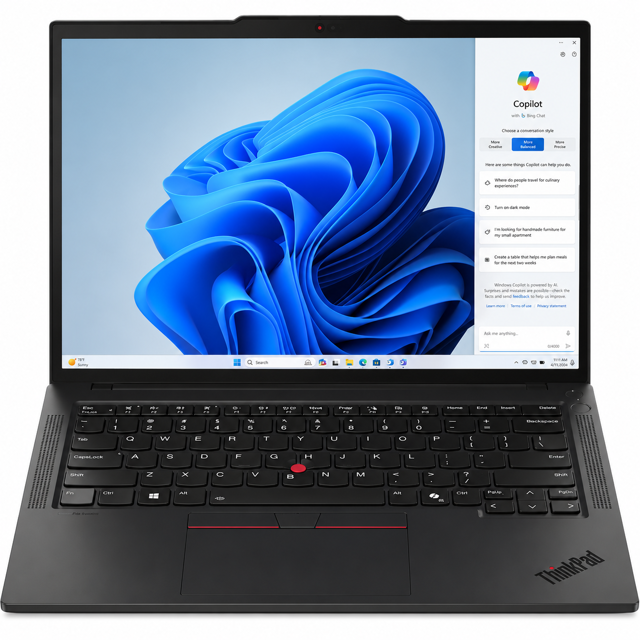

Lenovo Business Laptop ThinkPad P14s Gen 5 AMD

Turn off the computer and disconnect from AC power and all connected cables

Close the computer display and turn over the computer

Is the Mylar film covering the wireless WAN module removed?

Wireless WAN Module Installation

Is the computer disconnected from AC power and all connected cables?

Remove the nano-SIM-card tray if applicable

Close the computer display and turn over the computer

Remove the base cover assembly with less than 5 kg pressure

Was the pressure released immediately after the base cover hook was released?

Base Cover Assembly Installation

Use only Lenovo-authorized battery specified for the computer.

Ensure battery is not opened, disassembled, or serviced unless competent to do so.

Do not crush, puncture, or short-circuit the battery.

Keep the battery away from children and fire.

Stop using the battery if damaged or if there is discharge or buildup on leads.

Store batteries at room temperature, charged to 30-50% capacity.

Do not dispose of the battery in landfills; comply with local regulations.

Read Generic Safety and Compliance Notices

Turn off the computer and disconnect from AC power and all connected cables

Loosen the screws that secure the keyboard

Push the keyboard to release the latches from the keyboard bezel

Pivot the keyboard slightly upward and turn it over

Place the keyboard on the palm rest and detach the connectors

Turn off the computer and disconnect from AC power and all connected cables

Close the computer display and turn over the computer

Accessing the Wireless WAN Module

Wireless-WAN-Module Bracket Replacement

Remove the wireless-WAN-module bracket
