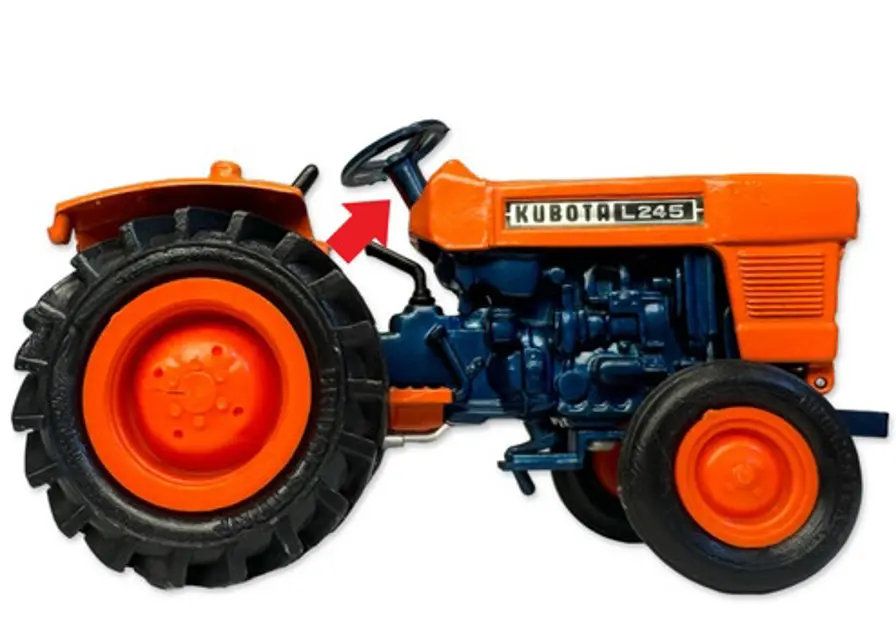

Kubota Tractor L245F

Apply grease to clutch release hub

Check that bearing cylinder head and pump connections are tight

Sign off on the oil replacement

Warning: This check requires trained personnel with PPE!

Fuel pipe clamps sufficiently tightened

If pipe clamps are loosened, apply oil and retighten to desired tolerance

Last date of fuel pipe replacement

Fuel pipe is made from rubber and will require periodic replacement. Change at least once every two years. When changing pipe also replace clamps

Air-bleed the system after changing

Sign off on the 150 Hourly Check

Cleaning of air cleaner element

Air cleaner of dry element type, therefore oil is not needed

Foreign material such as leaves removed from around the filter

Wing bolt tightened if necessary

Dust cup installed to the air cleaner so as the mark on the cover of the cup points upward

Element cleaned every 100 hours of operation

Air pressure at the nozzle does not exceed 100psi (7kgf/ cm?: 0.69MPa)

Reasonable distance maintained between the nozzle and the filter

During this period, pay careful attention to the following:

Engine oil and oil filter of the hydraulic mechanism changed after first 35 hours of use

Transmission oil changed after first 50 hours of use

Sudden starting or sudden braking avoided

Engine warmed up before operation when outside temperature is low

Speed reduced on slopes or during bad road conditions

Sign off on the initial 60 hours of operation

Warning: This procedure requires trained personnel with PPE!

Radiator hoses are fastened securely

Radiator hose clamps are sufficiently tightened

If hose clamps are loose, apply oil and retighten to desired tolerance.

Radiator hose requires replacement?

If radiator hose or clamps break during operation, boiling water may escape and cause injury. Be sure to check these items regularly and replace them at once if they appear damaged or worn.

Sign off on the 150 Hourly / 6 Monthly Check
