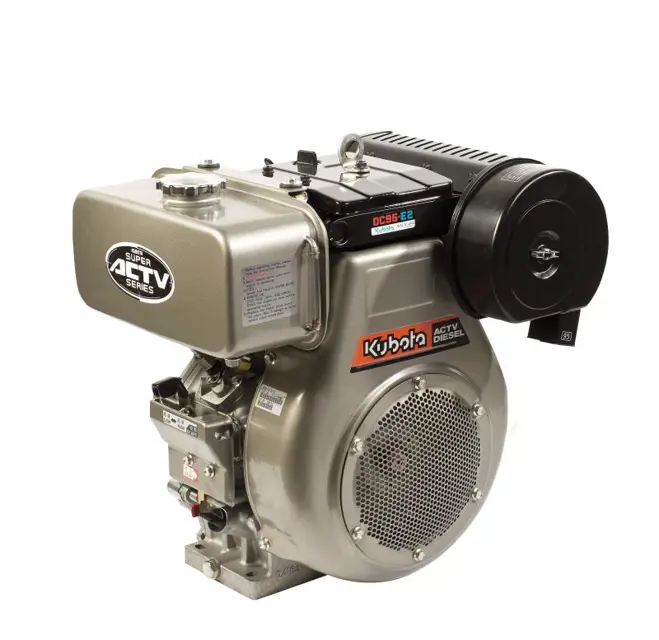

Kubota Diesel Engine OC95

Warning: Handle the fuel filter with care to avoid damage.

Enter the machine's hour meter reading

Fuel filter removed after 100 hours of operation?

Fuel tank emptied before removing the fuel filter?

Fuel filter cleaned in fresh fuel?

If the fuel filter is damaged, replace it.

Sign off on the fuel filter maintenance

Crankcase oil checked and replenished?

Air cleaner (paper element type) replenished?

Fuel tank checked and replenished?

Rubber hoses and Clamp bands checked?

Sign off on the daily diesel engine maintenance

- Crankcase oil: Change the crank case oil 25 hours after initial operation and every 100 hours thereafter, using the following procedure:

(1) While the engine is still warm, empty the crankcase by removing the drain plug.

(2) Fill the crankcase up to the specified level with fresh oil.

Warning: Always ensure the machine is turned off and cooled down before performing any maintenance tasks.

Is the work site especially dusty?

If the work site is especially dusty, check and clean the air cleaner every day.

Remove any dust from the air cleaner and wipe the inner surfaces.

Remove dust from the air cleaner element by tapping it gently or by applying compressed air from the inside while rotating the element.

If the element is oily or coated with carbon dust, soak it in a neutral detergent solution for 15 minutes, wash it several times, rinse with fresh water, then allow it to dry.

Replace the element every year or after every sixth cleaning, whichever comes first.

If the element breaks, replace it. Otherwise, the service life of the engine will be shortened.

Change the crank case oil 25 hours after initial operation and every 100 hours thereafter, using the following procedure:

If not, run the engine until it is warm.

Empty the crankcase by removing the drain plug.

Fill the crankcase up to the specified level with fresh oil.

Clean the tail pipe of the muffler.

Sign off on the initial 25 hours diesel engine maintenance
