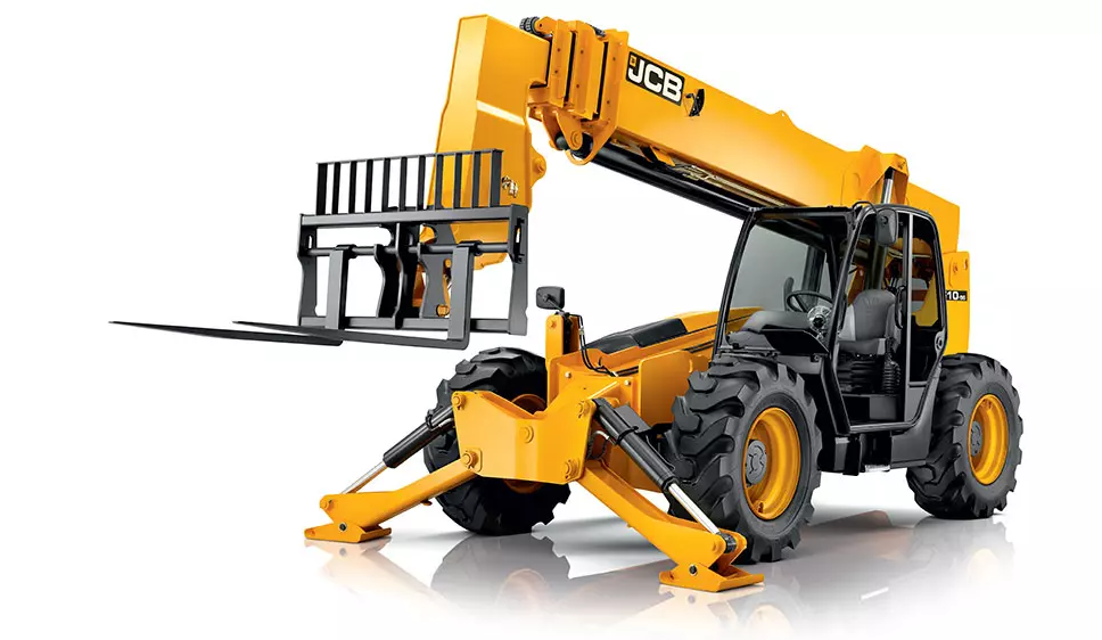

JCB Telescopic Handler 510-56F

Do not attempt to wash or clean the elements, they must only be renewed.

A new inner element must be installed at least every other time the outer element is changed. As a reminder, mark the inner element with marker pen each time the outer element is changed.

1. Make the machine safe. Refer to (PIL 01-03).

3. Depress the clips and lift off the cover.

4. Remove the outer element. Take care not to tap or knock the element.

5. If the inner element is to be changed, lift up pulls and remove the inner element.

Make the machine safe. Refer to: PIL 01-03.

Engine stopped and cooled down?

Upload a photo of the drive belt

Drive belt has cracks or is frayed or has pieces of material missing?

Sign off on the drive belt check

Warning: Failure to replace the oil and filter at the recommended interval could cause serious engine failure.

Machine made safe according to PIL 01-03

Is the oil level between the two marks on the dipstick?

Recommended oil added through one of the filler points if necessary

Sign off on the oil level check

Size of the socket used for the hexagon spigot nut

Belt lifted off the drive tensioner pulley

Spring force released by rotating the tensioner unit in the opposite direction

Tensioner roller and the fan pulley rotate smoothly

CAUTION! Oil will gush from the hole when the drain plug is removed. Keep to one side when you remove the plug.

Place a container of suitable size beneath the drain plug

Remove the oil sump drain plug and 'O' ring

Clean and install the drain plug with a new 'O' ring

Tighten the plug to the correct torque value

Loosen and remove the filter housing drain plug

Install the plug and tighten to the correct torque value

Unscrew the filter canister, use special tool if necessary

Clean the seal face of the filter head
