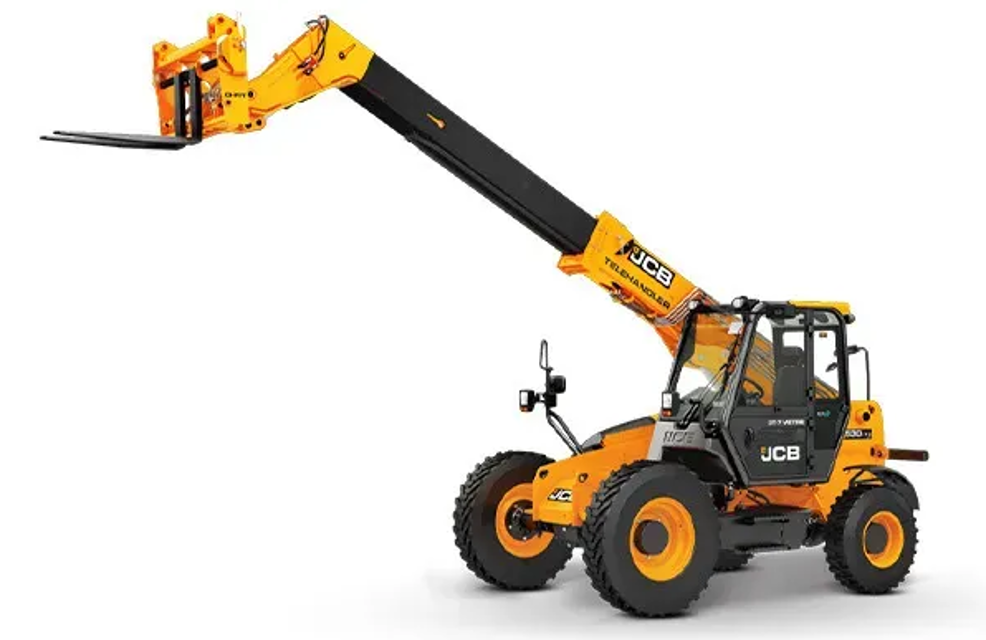

JCB Rough Terrain Variable Reach Truck 530-70

WARNING: Loads can fall off incorrectly spaced forks. Always space the forks correctly for the load. Make sure the forks are completely under the load before lifting.

CAUTION: The forks are heavy. Make sure suitable lifting equipment is used to support and transport them.

Loosen the fork clamping screws

Space the forks as wide as possible to suit the load

Tighten the fork clamping screws

Sign off on the fork adjustment procedure

Machine parked on level, solid ground

Attachment put flat on the ground

Engine stopped and ignition key removed

Battery disconnected to prevent accidental operation of the engine

Blocks put against the two sides of the wheels before getting below the machine

Machine parked on level, solid ground

Stabiliser legs deployed (if installed)

Lift arm raised and retracted, maintenance strut installed

Warning: Lower the arm carefully onto the strut to prevent possible damage

Engine stopped and ignition key removed

If the keyless ignition option is installed, stop the engine and wait for 15 seconds

Battery disconnected to prevent accidental operation of the engine

Sign off on the lift arm raised procedure
