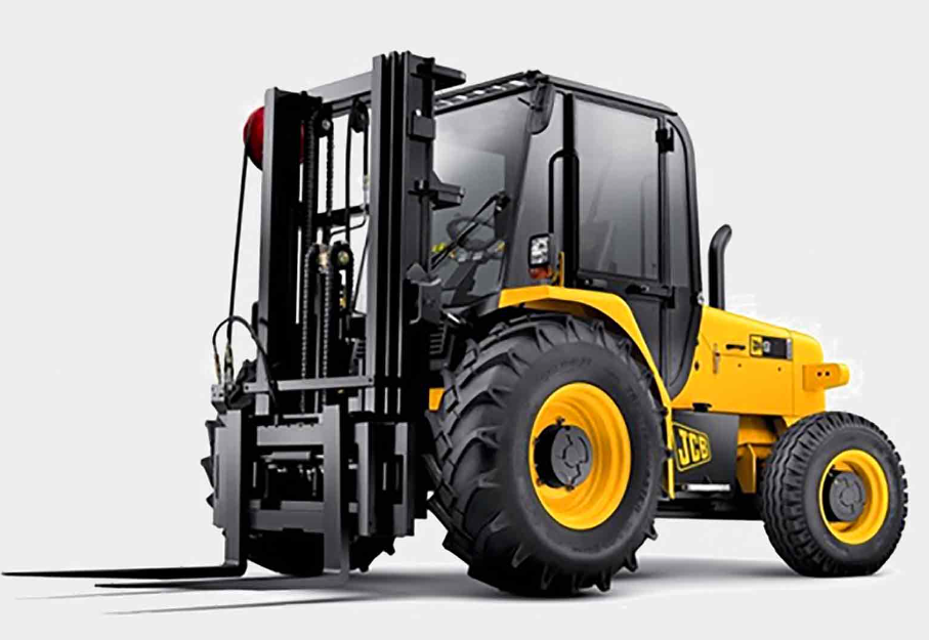

JCB Rough Terrain Forklift 926

Coolant Quality and Level Check

Water Separator and Engine Fuel Filter Check

Tightness of Wheel Nuts(8) Check

Steer Axle Pivots and Linkages Grease

Coolant Quality and Level Check

Air Cleaner Dust Valve(4) Change

Air Cleaner Outer Element(4) Change

Water Separator and Engine Fuel Filter Drain

Water Separator Fuel Filter(5) Change

Front End Accessory Drive (FEAD) Belt Condition Check

Engine Mounting Bolts for Tightness Check

WARNING: To avoid burning wear personal protective equipment (PPE) when handling hot components. To protect your eyes, wear personal protective equipment (PPE) when using a brush to clean components.

WARNING: Airborne particles of light combustible material such as straw, grass, wood shavings, etc. must not be allowed to accumulate within the engine compartment or in the propshaft guards (when fitted). Inspect these areas frequently and clean at the beginning of each work shift or more often if required. Before opening the engine cover, ensure that the top is clear of debris.

CAUTION: Never use water or steam to clean inside the cab. The use of water or steam could damage the on-board computer and render the machine inoperable. Remove dirt using a brush or damp cloth.

Pay particular attention to the following areas:

If the radiator tubes/fins get clogged the radiator will be less efficient.

b Open the bonnet and clean the radiator. Brush off all debris from the cooler tubes and fins. Make sure the loosened material is brushed out of the cooler enclosure.

c Close the bonnet and fit radiator grille.

WARNING: Before testing the park brake make sure the area around the machine is clear of people.

Enter the machine. Fasten your seat belt (if fitted) and park the machine on a level dry surface.

Start the engine and raise the attachments to the appropriate travel position.

Push down hard on foot brake pedal.

Select forward drive. The park brake warning light must illuminate.

WARNING: If the machine starts to move during the following test, immediately apply the foot brake and reduce the engine speed.

Move the park brake lever fractionally forward until the park brake warning light is just extinguished.

Cooling System Drain and Refill

Air Cleaner Dust Valve(4) Change

Air Cleaner Outer Element(4) Change

Air Cleaner Inner Element(4) Change

Water Separator and Engine Fuel Filter Drain

Water Separator Fuel Filter(5) Change

Front End Accessory Drive (FEAD) Belt Condition Check
