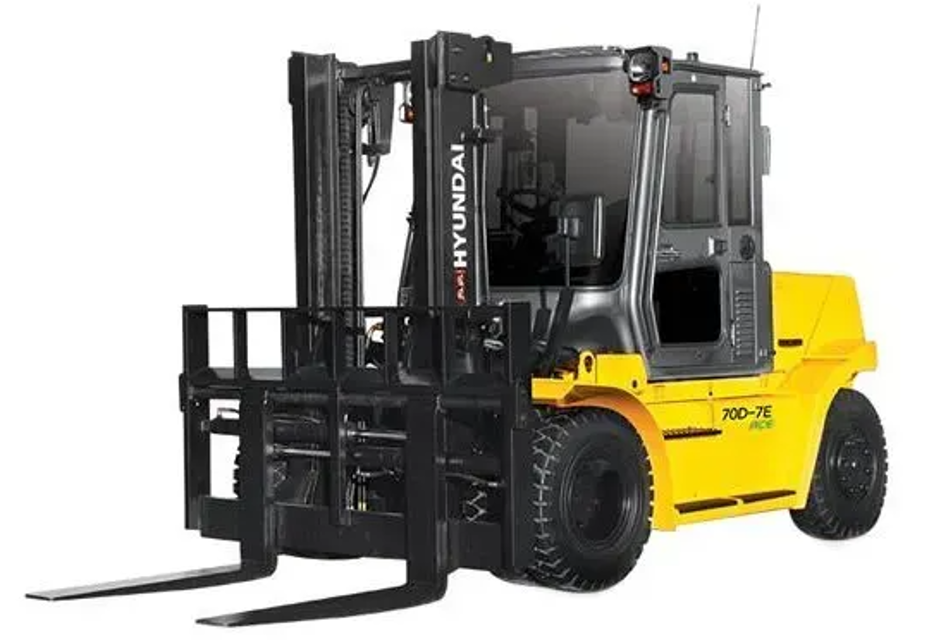

Hyundai Forklift 70D-7E

Raise forks 100 to 150mm(4 to 6in) from ground. Push with a rod check that both chains have approximately same amount of slack.

1 Loosen locknut and turn nut.

2 Equalize tension on the lift chain.

Do not put hands into the mast.;

Always stop the engine before servicing.

Open the door, loosen the wing bolt and remove the recircular plenum assembly.

Clean the recircular plenum using a pressurized air(Below 2kgf/cm2, 28psi). When using pressurized air, be sure to safety glasses.

Inspect the filter after cleaning. If it is damaged or badly contaminated, use a new filter.

PRECAUTIONS FOR USING AIR CONDITIONER

When using the air conditioner for a long time, open the window once every one hour.

Be careful not to overcool the cab.

The cab is properly cooled if the operator feels cool when entering there from outside(About 5ÁC lower than the outside temperature).

Engine oil and oil filter check

Lift chain check and lubrication

Mast roller check and lubrication

Lift cylinder rod end check and lubrication

Lift cylinder tube end check and lubrication

Tilt cylinder rod end check and lubrication

Tilt cylinder tube end check and lubrication

Change oil after removing drain plug.

Add oil until it just begins to flow out of the oil level.

Dispose of used oil in locally approved manner.

Engine oil and oil filter (Initial 50 hours only) Change/Replace

Warm up engine oil then park the truck in level place with forks lowered. Stop the engine and apply parking brake.

Remove drain plug and drain engine oil.

Also replace the engine oil filter. Check oil level using dipstick after changing the engine oil. Dispose of old oil in locally approved manner.

Examine truck for obvious damage

Check overhead guard for crack or obvious damage

Check backrest for crack or obvious damage

Check forks for crack or obvious damage

If yes, describe the damage or leak
