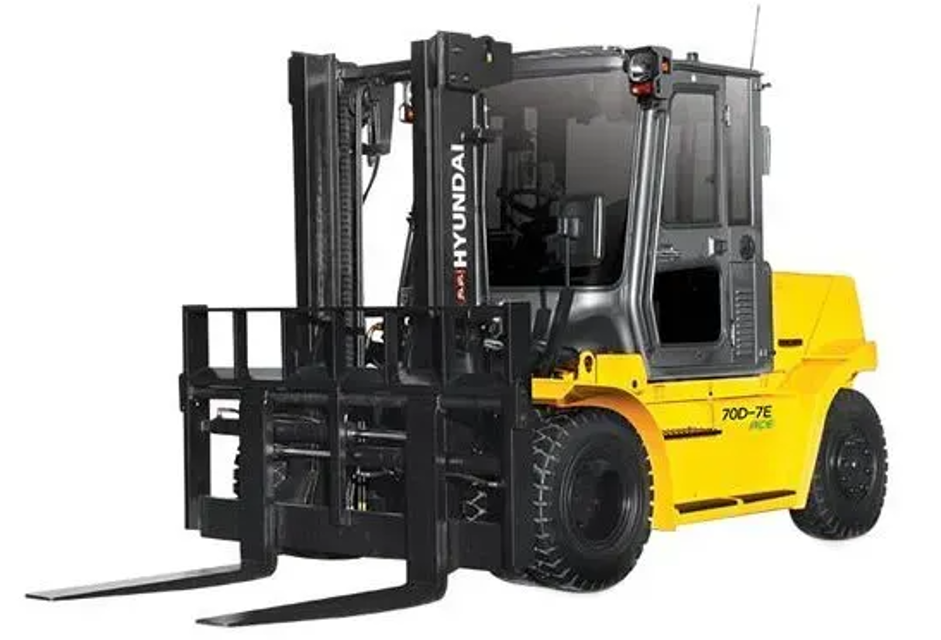

Hyundai Forklift 60D-7E

Warning: Do not put hands into the mast.

Forks raised 100 to 150mm(4 to 6in) from ground

Both chains have approximately same amount of slack

Locknut loosened and nut turned

Tension on the lift chain equalized

Sign off on the lift chain tension check

The seat adjustable to fit the contours of the operator's body. It will reduce operator fatigue due to long works hours and enhance work efficiency.

(1) Forward/Backward adjustment(A)

1 Pull lever A to adjust seat forward or back ward.

2 The seat can be moved forward and backward over 156mm in 12 steps.

1 Pull lever B to adjustment seat back rest.

2 The backrest of the seat can be reclined to 31+-2Áforward and 34.6+-2Ábackward.

1 Adjusting handle to the operator's weight.

Before using a lift truck, it is the operator's responsibility to check its condition and be sure it is safe to operate.

Check for damage and maintenance problems; have repairs made before you operate the truck.

Unusual noises or problems must be reported immediately to your supervisor or other designated authority.

Do not make repairs yourself unless you are trained in lift truck repair procedures and authorized by your employer. Have a qualified mechanic make repairs using genuine HYUNDAI or HYUNDAI-approved parts.

Do not operate a truck if it is in need of repair. If it is in an unsafe condition, remove the key and report the condition to the proper authority. If the truck becomes unsafe in any way while you are operating it, stop operating the truck, report the problem immediately, and have it corrected.

Lift trucks should be inspected every eight hours, or at the start of each shift. In general, the daily inspection should include the visual and functional checks described on the followings.

Leaking hydraulic oil may be hot or under pressure. When inspecting a lift truck, wear safety glasses and do not check for leaks with bare hands.

First, perform a visual inspection of the truck and its major components;

Engine oil and oil filter check

Lift chain check and lubrication

Mast roller check and lubrication

Lift cylinder rod end check and lubrication

Lift cylinder tube end check and lubrication

Tilt cylinder rod end check and lubrication

Tilt cylinder tube end check and lubrication

OSHA-approved eye protection rated for 200kPa(30psi) is required for air cleaning operation. When changing oil, remove strainer and clean it with flushing oil. Blow dry compressed air from inside of strainer to outside and install when completely dry.

Dispose of oil in locally approved manner.

Bleed the air after checking the oil level as below;

Check for mast overhead clearance.

Fully raise and lower mast and also fully tilt it forward and backward several times.
