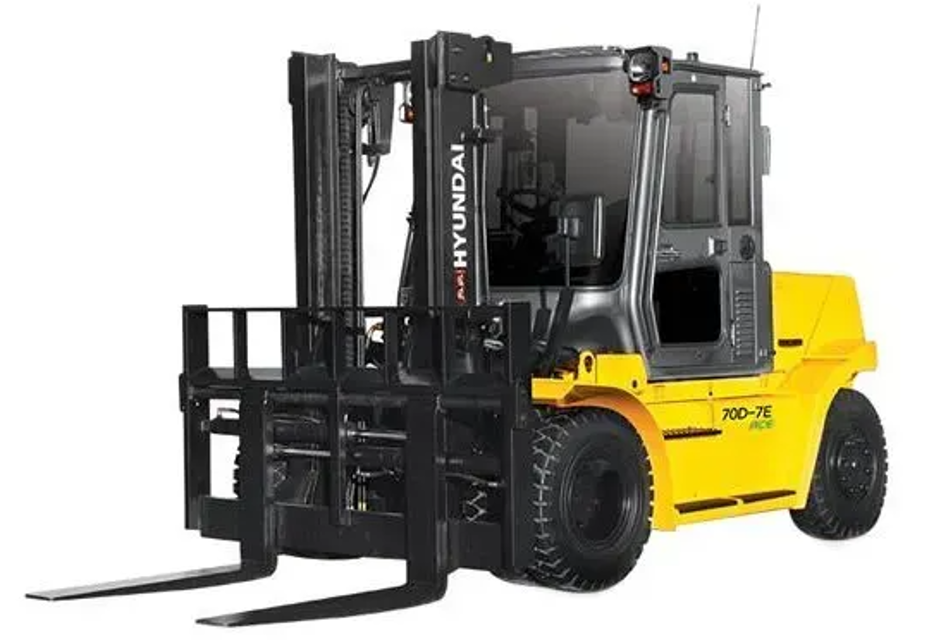

Hyundai Forklift 70DS-7E

OSHA-approved eye protection rated for 200kPa(30psi) is required for air cleaning operation.

Dispose of oil in locally approved manner.

Oil changed and strainer cleaned with flushing oil

Strainer dried with compressed air from inside to outside

Air bled after checking oil level

Mast overhead clearance checked

Mast fully raised and lowered, and also fully tilted forward and backward several times

Replace the fuel filler when the engine is cool. Carry out this maintenance in a place away from fire. Removing the fuel filler will produce explosive fumes. Wipe off any spilled fuel or oil immediately from the truck or surrounding area.

1 Using a filter wrench, remove the cartridge.

2 Fit the new cartridge with fuels coat the surface of the packing lightly with engine oil, then install.

When the fuel filter is replaced, the fuel system should be bled to remove air if the fuel supply is exhausted during driving.

Change oil after removing drain plug.

Add oil until it just begins to flow out of the oil level.

Dispose of used oil in locally approved manner.

2 When changing oil, remove strainer and clean it with flushing oil.

OSHA approved eye protection rated for 200kPa(30psi) is required for air cleaning operation.

Blow dry compressed air from the inside of strainer to outside and install when completely dry.

(1) These are the parts which the operator cannot judge the remained lifetime of them by visual inspection.

(2) Repair or replace if an abnormality of these parts is found even before the recommend replacement interval.

Replacement of consumable service parts is not covered under warranty.

Packing, seal, and O-ring steering cylinder

Engine oil and oil filter check

Lift chain check and lubrication

Mast roller check and lubrication

Lift cylinder rod end check and lubrication

Lift cylinder tube end check and lubrication

Tilt cylinder rod end check and lubrication

Tilt cylinder tube end check and lubrication
