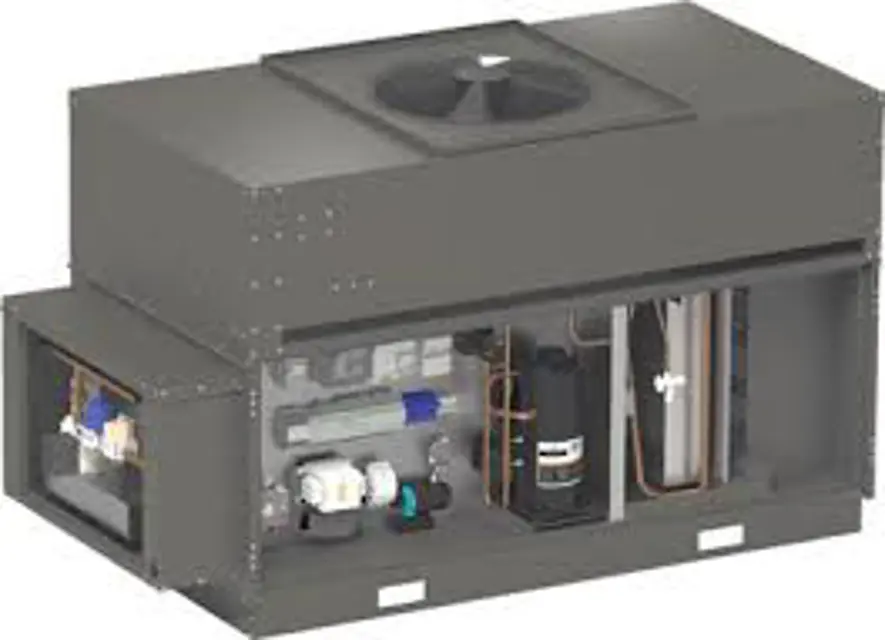

Greenheck Dedicated Outdoor Air Unit RVE-20

Check coils for dirt and debris

Select cleaning method based on fin condition

Is the fin thickness over 0.0095 inches?

Test the spray pressure on a small corner of the coil

Check all fasteners for tightness

Check for fatigue, corrosion, wear

Describe any corrective actions taken

Inspect belts for signs of wear such as being chewed up or leaving belt dust near the motor pulley.

Is there any belt dust near the motor pulley?

Inspect wheel for smooth and unrestricted rotation.

Does the belt require replacement?

Contact the local manufacturer representative if replacement is needed. Document the contact details and any instructions received.

Inspect the condensate drain for any blockages or damage

Clean the condensate drain if necessary

Refill the condensate drain with water

Inspect the heat transfer coils for cleanliness

Clean the heat transfer coils if required

Inspect fan impeller for fatigue, corrosion, or wear

Inspect fan housing for fatigue, corrosion, or wear

Clean wheel and housing if oil and dust accumulation is observed

Check all fasteners for tightness

Check all set screws and locking collars for tightness

Is the fan operating smoothly and safely after maintenance?
