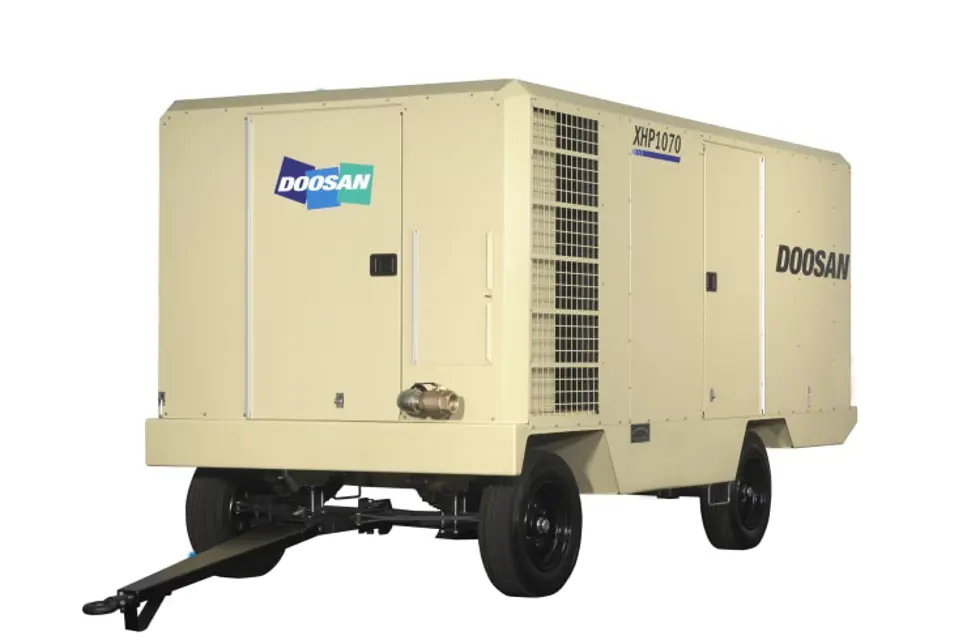

Doosan Compressor 10/425

Create an account to install this asset package.

Maintenance Plans for Doosan Compressor Model 10/425

Integrate maintenance plans directly into your work orders in MaintainX.

1000 Hourly/6 Monthly Compressor Maintenance

Compressor Oil Filter Element replaced

Compressor Oil replaced

Wheels (bearings, seals, etc) checked

Engine Coolant checked

Fuel Tank (fill at end of day) drained

Hydraulic Oil Level replaced

Sign off on the compressor maintenance

Run this procedure

3000 Miles Electric Brake Adjustment

Warning: This procedure requires trained personnel with PPE!

Trailer secured on adequate capacity jack stands

Wheel and drum rotate freely

Adjusting hole cover removed from the adjusting slot on the bottom of the brake backing plate

Brake shoes expanded until the pressure of the linings against the drum makes the wheel very difficult to turn

Starwheel rotated in the opposite direction until the wheel turns freely with a slight lining drag

Adjusting hole cover replaced and wheel lowered to the ground

Repeat above procedures on all brakes

Sign off on the brake adjustment

Run this procedure

1 Daily Compressor Maintenance

Engine Oil Level Check

Radiator Coolant Level Check

Air Cleaner Service Indicators Check

Fuel Tank (fill at end of day)

Fuel/Water Separator Check

Lights (running, brake, & turn) check before towing

Pintle Eye Bolts check before towing

Sign off on the daily compressor maintenance

Run this procedure

500 Hourly/6 Monthly Compressor Oil Replacement

Bare Airend -- Pertains to major airend parts (rotors, housings, and bearings).

Airend Components -- Pertains to auxiliary attachments to the bare airend (drive coupling, seals, pumps, valves, tubes, hoses, fittings and filter housing).

The compressor oil must be replaced every 500 hours of operation or six (6) months, whichever comes first for models HP600 -- P1600.

Refer to the fluids and lubricants chart for ambient temperature ranges and specifications, in the lubrication section of this manual.

The compressor oil must be replaced every 500 hours of operation or six (6) months, whichever comes first for models P100--P600. The compressor oil must be replaced every 1000 hours of operation or six (6) months, whichever comes first for models HP600--P1600.

Refer to the fluids and lubricants chart for ambient temperature ranges and specifications in the lubrication section of this manual.

Enter the current hours of operation

Enter the date of the last oil replacement

Was the oil replaced successfully?

Run this procedure

2000 Hourly/12 Monthly Oil Separator Element Maintenance

Enter the current operating hours of the oil separator

Is the tank pressure zero?

Upload a photo of the disconnected hose from the scavenge tube

Upload a photo of the removed scavenge tube from tank cover

Upload a photo of the disconnected service line from cover

Upload a photo of the removed cover, element and inner shell
