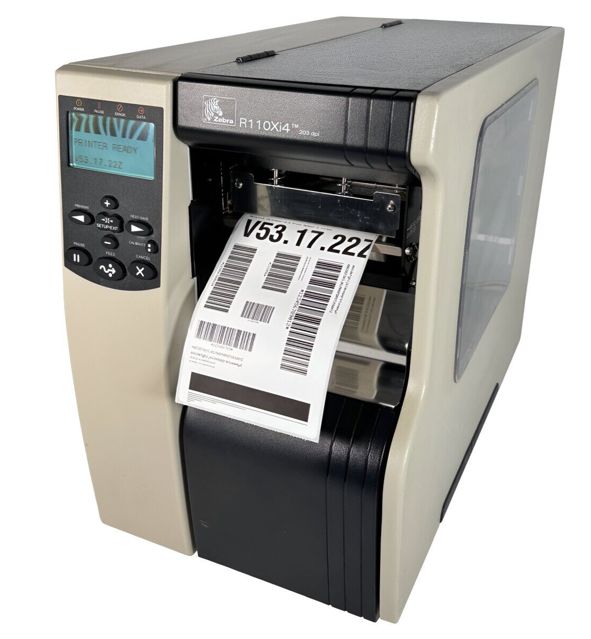

Zebra Printer R110Xi4 600 dpi

Perform these procedures at the following times:

• Direct Thermal Print Mode: After every roll of labels or 500 ft (150 m) of fanfold labels.

• Thermal Transfer Print Mode: After every roll (1500 ft or 450 m) of ribbon.

If print quality does not improve after you perform this procedure, clean the printhead with Save-a-Printhead cleaning film. This specially coated material removes contamination buildup without damaging the printhead. Call your authorized Zebra reseller or distributor for more information.

Cleaning intervals are as follows, based on the printhead resolution:

For 203 and 300 dpi printers Clean the printhead after every roll (1500 feet or 450 m) of thermal transfer ribbon or after every roll (500 feet or 150 m) of direct thermal labels or when CLEAN HEAD NOW appears on the LCD. Clean the printhead more often if you see inconsistent print quality, such as voids in the bar code or graphics.

For 600 dpi printers Clean the printhead after each roll (500 feet or 150 m) of labels or when CLEAN HEAD NOW appears on the LCD. Clean the printhead more often if you see inconsistent print quality, such as voids in the bar code or graphics.

Warning: Ensure the machine is turned off and unplugged before cleaning

Enter the length of labels used in Direct Thermal Print Mode

Enter the length of ribbon used in Thermal Transfer Print Mode

Upload a photo of the cleaned sensor

Sign off on the sensor cleaning

Perform these procedures at the following times:

• Direct Thermal Print Mode: After every roll of labels or 500 ft (150 m) of fanfold labels.

• Thermal Transfer Print Mode: After every roll (1500 ft or 450 m) of ribbon.

After every four rolls of media, inspect the media compartment. Use a soft bristle brush or a vacuum cleaner to remove any dirt and lint from the interior of the printer.

Warning: This procedure is for the 140Xi4, 170Xi4, and 220Xi4 printers only. Fuses are not user-replaceable in the 110Xi4.

Caution: Turn the AC power switch off (O) and remove the power cord before performing this procedure.

The printer uses a metric-style fuse (5 × 20 mm IEC) rated at F5A, 250 V. The AC power entry module comes with two approved fuses in the fuse holder: one is in-circuit, and the second is provided as a spare. The end caps of the fuse must bear the certification mark of a known international safety organization.

Turn off (O) the printer, and disconnect the AC power cord and all data cables.

Use a small-blade screwdriver or similar tool to remove the fuse holder.

Remove the faulty fuse and install a new fuse in the in-circuit position.

Important: If you use the spare fuse, be sure to order a replacement fuse from an authorized Zebra distributor. The spare fuse should be the exact type and rating as the original in-circuit fuse.

Snap the fuse holder back into the AC power entry module.

Reconnect the data cables and AC power cord, and turn on (l) the printer.

Warning: Ensure the machine is turned off before starting the cleaning process

CLEAN HEAD NOW message appears?

Enter the length of labels used in Direct Thermal Print Mode

Enter the length of ribbon used in Thermal Transfer Print Mode

Sign off on the sensor cleaning
