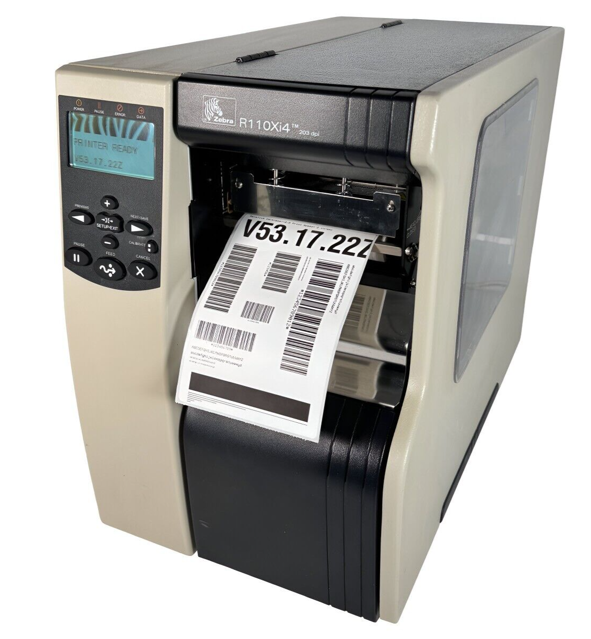

Zebra Printer R110Xi4 200 dpi

Perform these procedures at the following times:

• Direct Thermal Print Mode: After every roll of labels or 500 ft (150 m) of fanfold labels.

• Thermal Transfer Print Mode: After every roll (1500 ft or 450 m) of ribbon.

If print quality does not improve after you perform this procedure, clean the printhead with Save-a-Printhead cleaning film. This specially coated material removes contamination buildup without damaging the printhead. Call your authorized Zebra reseller or distributor for more information.

Cleaning intervals are as follows, based on the printhead resolution:

For 203 and 300 dpi printers Clean the printhead after every roll (1500 feet or 450 m) of thermal transfer ribbon or after every roll (500 feet or 150 m) of direct thermal labels or when CLEAN HEAD NOW appears on the LCD. Clean the printhead more often if you see inconsistent print quality, such as voids in the bar code or graphics.

For 600 dpi printers Clean the printhead after each roll (500 feet or 150 m) of labels or when CLEAN HEAD NOW appears on the LCD. Clean the printhead more often if you see inconsistent print quality, such as voids in the bar code or graphics.

Warning: Ensure the machine is turned off before starting the cleaning process

CLEAN HEAD NOW message appears?

Direct Thermal Print Mode: Have you used every roll of labels or 500 ft (150 m) of fanfold labels?

Thermal Transfer Print Mode: Have you used every roll (1500 ft or 450 m) of ribbon?

Upload a photo of the cleaned sensor

Sign off on the sensor cleaning

Warning: Ensure the machine is turned off before starting the cleaning process

CLEAN HEAD NOW message appears?

Enter the length of labels used in Direct Thermal Print Mode

Enter the length of ribbon used in Thermal Transfer Print Mode

Sign off on the sensor cleaning

Warning: The cutter blade is sharp. Do not touch or rub the blade with your fingers.

Turn off (O) the printer, and disconnect the AC power cord and all data cables.

Snap plate cleaned with solvent

If cleaning does not remove label fragments and adhesive, contact an authorized service technician.

Reconnected the data cables and AC power cord, and turned on (l) the printer

Cleaned the outside surfaces of the printer with a lint-free cloth

Sign off on the printer cleaning

Perform these procedures at the following times:

• Direct Thermal Print Mode: After every roll of labels or 500 ft (150 m) of fanfold labels.

• Thermal Transfer Print Mode: After every roll (1500 ft or 450 m) of ribbon.

If print quality does not improve after you perform this procedure, clean the printhead with Save-a-Printhead cleaning film. This specially coated material removes contamination buildup without damaging the printhead. Call your authorized Zebra reseller or distributor for more information.

Cleaning intervals are as follows, based on the printhead resolution:

For 203 and 300 dpi printers Clean the printhead after every roll (1500 feet or 450 m) of thermal transfer ribbon or after every roll (500 feet or 150 m) of direct thermal labels or when CLEAN HEAD NOW appears on the LCD. Clean the printhead more often if you see inconsistent print quality, such as voids in the bar code or graphics.

For 600 dpi printers Clean the printhead after each roll (500 feet or 150 m) of labels or when CLEAN HEAD NOW appears on the LCD. Clean the printhead more often if you see inconsistent print quality, such as voids in the bar code or graphics.
