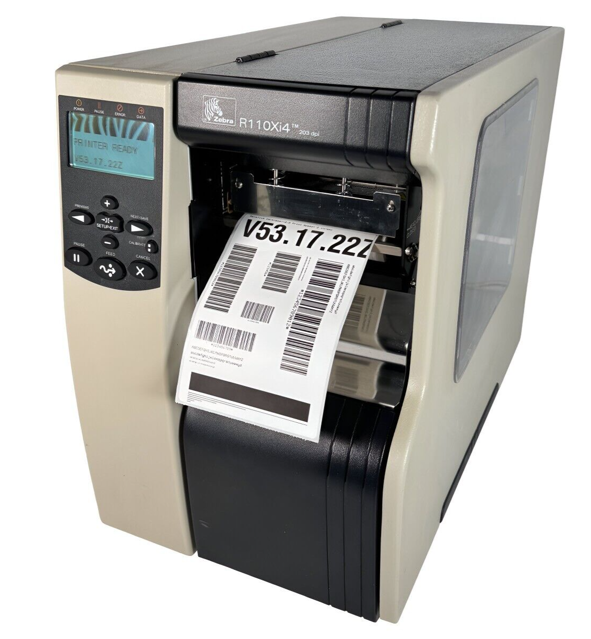

Zebra Printer R110Xi4 300 dpi

Warning: Only trained personnel should perform this procedure.

CLEAN HEAD NOW message appears?

Enter the length of labels used in Direct Thermal Print Mode

Enter the length of ribbon used in Thermal Transfer Print Mode

Sign off on the sensor cleaning

Perform these procedures at the following times:

• Direct Thermal Print Mode: After every roll of labels or 500 ft (150 m) of fanfold labels.

• Thermal Transfer Print Mode: After every roll (1500 ft or 450 m) of ribbon.

If print quality does not improve after you perform this procedure, clean the printhead with Save-a-Printhead cleaning film. This specially coated material removes contamination buildup without damaging the printhead. Call your authorized Zebra reseller or distributor for more information.

Cleaning intervals are as follows, based on the printhead resolution:

For 203 and 300 dpi printers Clean the printhead after every roll (1500 feet or 450 m) of thermal transfer ribbon or after every roll (500 feet or 150 m) of direct thermal labels or when CLEAN HEAD NOW appears on the LCD. Clean the printhead more often if you see inconsistent print quality, such as voids in the bar code or graphics.

For 600 dpi printers Clean the printhead after each roll (500 feet or 150 m) of labels or when CLEAN HEAD NOW appears on the LCD. Clean the printhead more often if you see inconsistent print quality, such as voids in the bar code or graphics.

Warning: This procedure is for the 140Xi4, 170Xi4, and 220Xi4 printers only. Fuses are not user-replaceable in the 110Xi4.

Caution: Turn the AC power switch off (O) and remove the power cord before performing this procedure.

Printer turned off and disconnected from power source?

Fuse holder removed with a small-blade screwdriver or similar tool?

Faulty fuse removed and new fuse installed in the in-circuit position?

Important: If you use the spare fuse, be sure to order a replacement fuse from an authorized Zebra distributor. The spare fuse should be the exact type and rating as the original in-circuit fuse.

Fuse holder snapped back into the AC power entry module?

Data cables and AC power cord reconnected, and printer turned on?

Note: If the printer does not power on, an internal component failure may have occurred, and the printer requires servicing by an authorized service technician.

Clean the snap plate when label adhesive or a label is stuck to the underside. Figure 20 shows the location of the snap plate. The snap plate is made of plastic in RFID printers and of metal in non-RFID printers.

Important • Be careful not to bend or twist the metal snap plate as you remove it from or insert it into the printer.

To clean a metal snap plate in a non-RFID printer, complete these steps:

1. Caution • Turn off (O) the printer and disconnect it from the power source before performing the following procedure.

Turn off (O) the printer, and disconnect the AC power cord and all data cables.

2. Caution • While performing any tasks near an open printhead, remove all rings, watches, hanging necklaces, identification badges, or other metallic objects that could touch the printhead.

Open the printhead and remove the media and ribbon (if used).

3. Insert a small-blade screwdriver or similar tool into the loop on the left side of the snap plate. Gently lift the left side of the snap plate slightly and, if necessary, support it with your left hand.

Warning: The cutter blade is sharp. Do not touch or rub the blade with your fingers.

Turn off (O) the printer and disconnect it from the power source before performing the following procedure.

Printer turned off and disconnected from power source

Upload a photo of the stationary cutter blade before cleaning

Cleaned the stationary cutter blade using the swab from the Preventive Maintenance Kit or a clean swab dipped in a solution of isopropyl alcohol (minimum 90%) and deionized water (maximum 10%)

Upload a photo of the stationary cutter blade after cleaning

Did cleaning remove label fragments and adhesive?

If cleaning did not remove label fragments and adhesive, contact an authorized service technician.

Reconnected the data cables and AC power cord, and turned on (l) the printer
