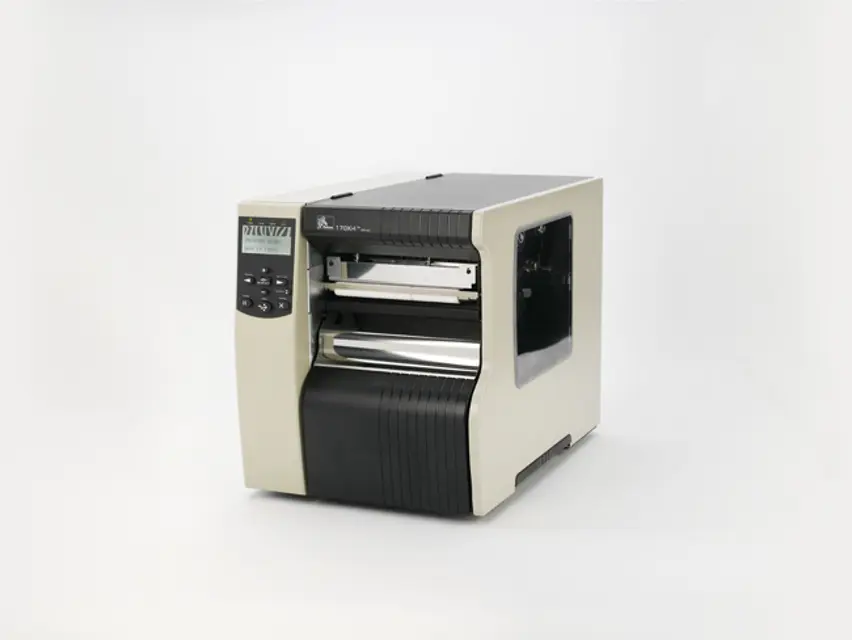

Zebra Printer 170Xi4 200 dpi

Create an account to install this asset package.

Maintenance Plans for Zebra Printer Model 170Xi4 200 dpi

Integrate maintenance plans directly into your work orders in MaintainX.

Printer Cleaning

Warning: The cutter blade is sharp. Do not touch or rub the blade with your fingers.

Turn off (O) the printer, and disconnect the AC power cord and all data cables.

Snap plate cleaned with solvent

Cutter cleaned with solvent

If cleaning does not remove label fragments and adhesive, contact an authorized service technician.

Reconnected the data cables and AC power cord, and turned on (l) the printer

Cleaned the outside surfaces of the printer with a lint-free cloth

Sign off on the printer cleaning

Run this procedure

Black Mark Sensor Cleaning

Clean by Air blow.

Perform these procedures at the following times:

• When CLEAN HEAD NOW appears.

• Direct Thermal Print Mode: After every roll of labels or 500 ft (150 m) of fanfold labels.

• Thermal Transfer Print Mode: After every roll (1500 ft or 450 m) of ribbon.

Run this procedure

Cutter Blade Lubrication

Warning: The cutter blade is sharp. Do not touch or rub the blade with your fingers.

Caution: Some commercially available lubricants will damage the finish and the mechanical parts if used inappropriately on this printer.

Enter the number of cuts made

Lubrication successful?

Upload a photo of the lubricated blade

Sign off on the cutter blade lubrication

Run this procedure

Snap Plate Cleaning

Clean the snap plate when label adhesive or a label is stuck to the underside. Figure 20 shows the location of the snap plate. The snap plate is made of plastic in RFID printers and of metal in non-RFID printers.

Non-RFID Printers

Important • Be careful not to bend or twist the metal snap plate as you remove it from or insert it into the printer.

To clean a metal snap plate in a non-RFID printer, complete these steps:

1. Caution • Turn off (O) the printer and disconnect it from the power source before performing the following procedure.

Turn off (O) the printer, and disconnect the AC power cord and all data cables.

2. Caution • While performing any tasks near an open printhead, remove all rings, watches, hanging necklaces, identification badges, or other metallic objects that could touch the printhead.

Open the printhead and remove the media and ribbon (if used).

3. Insert a small-blade screwdriver or similar tool into the loop on the left side of the snap plate. Gently lift the left side of the snap plate slightly and, if necessary, support it with your left hand.

Run this procedure

Transmissive (Media) Sensor Cleaning

Warning: Ensure the machine is turned off and unplugged before cleaning.

CLEAN HEAD NOW message appears?

Select the print mode

Enter the length of labels used in Direct Thermal Print Mode

Enter the length of ribbon used in Thermal Transfer Print Mode

Air blow cleaning performed?

Sign off on the sensor cleaning

Run this procedure
