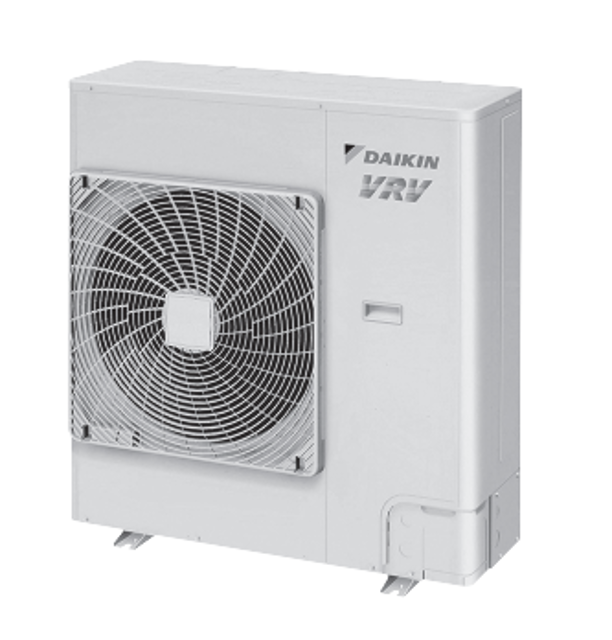

Daikin Outdoor Unit Air Conditioner RXTQ48TBVJUA

Create an account to install this asset package.

Maintenance Plans for Daikin Outdoor Unit Air Conditioner Model RXTQ48TBVJUA

Integrate maintenance plans directly into your work orders in MaintainX.

Refrigerant Overcharge Check

Warning: This check requires trained personnel with PPE!

Enter the high pressure reading

Is overload control conducted causing insufficient cooling capacity?

Enter the superheating degree of suction gas

Is the compressor lower in discharge pipe temperature despite of pressure loads?

Enter the subcooling degree of condensate

In heating, is the temperature of discharge air through the subcooled section lower?

Sign off on the refrigerant overcharge check

Run this procedure

Power Transistor Check

Warning: Ensure the power is OFF before starting the procedure

All wiring removed from the PCB?

Preparation

Select the type of multimeter used

Point of Measurement and Judgment Criteria

Resistance value measured 10 minutes after power OFF?

Select the mode of measurement

Sign off on the power transistor check

Run this procedure

Refrigerant Shortage Check

In case of VRV Systems, the only way to judge as the shortage of refrigerant is with operating conditions due to the relationship to pressure control and electronic expansion valve control.

As information for making a judgement, refer to the information below.

Diagnosis of shortage of refrigerant

1. The superheating degree of suction gas rises. Consequently, the compressor discharge gas temperature becomes higher.

2. The superheating degree of suction gas rises. Consequently, the electronic expansion valve turns open.

3. Low pressure drops to cause the unit not to demonstrate cooling/heating capacity.;

Run this procedure

Broken Wire Check

Warning: Ensure the power supply to all equipment is turned OFF before starting the procedure.

Power supply to all equipment turned OFF?

Short circuit between the indoor-outdoor unit terminal F1 and F2 in the outdoor unit.

Short circuit between the indoor-outdoor unit terminal F1 and F2 in the outdoor unit completed?

Conduct continuity checks between the transmission wirings F1 and F2 of the indoor unit a that is farthest from the outdoor unit using a multimeter.

Continuity check between the transmission wirings F1 and F2 of the indoor unit a completed?

Is there continuity between the said transmission wirings?

If there is no continuity, the transmission wiring may have broken wires. With the indoor-outdoor unit terminal of the outdoor unit short circuited, identify the place with continuity in the transmission wiring of the indoor unit b, transmission wiring of the indoor unit c, and transmission wiring of the indoor unit d in the order described.

Place with continuity in the transmission wiring of the indoor unit b identified?

Run this procedure
