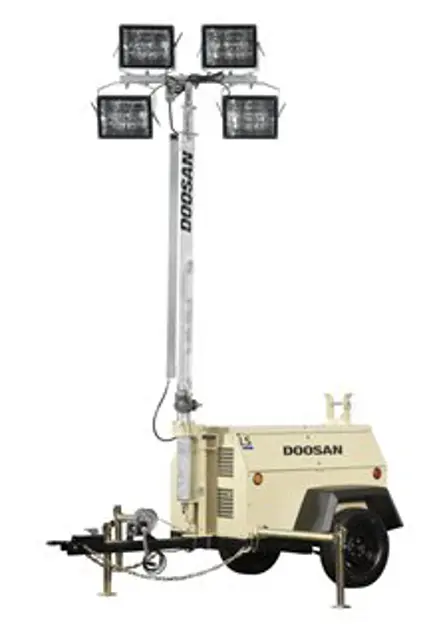

Doosan Portable Light Tower LSC-60HZ-T4F

Create an account to install this asset package.

Maintenance Plans for Doosan Portable Light Tower Model LSC-60HZ-T4F

Integrate maintenance plans directly into your work orders in MaintainX.

250 Hourly/3 Monthly Light Tower Maintenance

1. Air Cleaner Housing Check

The Air Cleaner Assembly (housing) should be inspected every three months or 500 hours for any leakage paths.

NOTE: Ensure the inlet is free from obstruction.

Ensure the air cleaner mounting bolts and clamps are tight and the air cleaner is mounted securely. Check the air cleaner housing for dents or damage to the cleaner which could lead to a leak.

2. Fuel/Water Separator Element Check

Run this procedure

Light Tower Maintenance

1. Exterior Finish - as needed

This unit was painted and heat cured at the factory with a high quality, thermoset polyester powder coating. The following care will ensure the longest possible life from this finish.

1.1. If necessary to remove dust, pollen, etc. from housing, wash with water and automotive shampoo or mild dish washing liquid detergent. Do not scrub with a rough cloth, pad, etc.

1.2. To remove grease, a fast evaporating alcohol or chlorinated solvent can be used. Note: This may cause some dulling of the paint finish.

1.3. If the paint has faded or chalked, the use of a commercial grade, non-abrasive car wax may partially restore the color and gloss.

2. Engine - Refer to Engine Operator Manual

3. Decals - Replace decals if removed, damaged or missing

Run this procedure

50 Hourly/1 Yearly Air Cleaner Service

Fuel Tank

Drain water from fuel tank

Water Sedimenter

Is water sedimenter installed?

Drain water from water sedimenter

Check

Check completed

Run this procedure

Initial 50 Hours Engine Service

Solenoid Fuel Pump Filter - Inspect and Clean (Note: N/A LSC and LS)

Engine oil and Oil filter - Replace

Bolts and nuts on the engine - Retighten

Run this procedure

1 Monthly Light Tower Maintenance

Engine Radiator (exterior) Check

Check the coolant level in the radiator. The coolant must cover the tubes in the top tank (approximately 1 inch high on a clean measuring rod, stuck down filler neck).

Air Intake Hoses and Flexible Hoses Check

Each month it is recommended that the intake hoses from the air cleaner and all flexible hoses used for water and fuel be inspected for the following:

Fasteners (tighten) Check

Monthly spot check several capscrews and nuts for proper torque. If any are found loose, a more thorough inspection must be made and deficiencies corrected.

Engine Protection Shutdown System Check

The operation of the Engine Protection Shutdown System should be checked every month or whenever it appears not to be operating properly. The three switches involved in this protective shutdown system are the Engine Coolant High Temperature Switch, the Engine Oil Pressure Switch and the Low Fuel Switch.

The Engine Oil Pressure Switch prevents the engine from operating with low oil pressure.

Run this procedure
