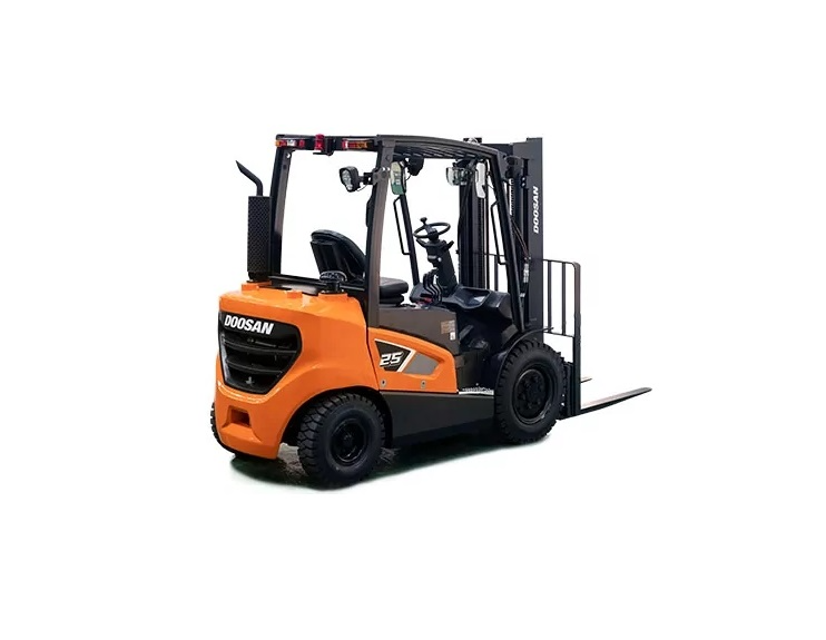

Doosan Forklift D20S-9

NOTICE! Never service precleaner with the engine running

Check the precleaner bowl for dirt build-up

If the dirt is up to the line, remove the precleaner bowl and empty it

Periodically wash the cover and bowl in water

Sign off on the precleaner maintenance

Warning: Always replace the secondary element. Do not attempt to reuse it by cleaning.

Primary air cleaner element removed

Inside of the air cleaner housing and cover cleaned

Gasket between the air cleaner housing and the engine inlet inspected

New secondary element installed

New or cleaned primary element installed

Lubricate the steer axle king pins, total of four fittings. Two on the right side and two on the left side

Lubricate the steering link bearings, total of four fittings. Two on the right side and two on the left side

Check for any worn or loose components of the steering mechanism

Check the bearings for wear and damage, if any are worn or damaged, replace them

Check for any loose bolts, and tighten bolts if necessary

Inject a sufficient amount of grease into the grease nipples on the universal joint;

Park the lift truck on a level surface, lower the forks, shift the transmission to NEUTRAL and shut OFF the engine. Block the wheels securely.

Chock the lift truck's tires to prevent unintentional movement.

Remove the floor mat and floor plate.

Make sure the parking brake is released. Refer to the “How to release the electronic parking brake” in the operation section.

Fully lock the Parking brake adjust bolt by rotating it clockwise and then, loosen it by rotating for 1/2 turn counterclockwise.

Lock the Lock nut with Parking brake adjust bolt fully secured to prevent it from moving.

Return the parking brake. Refer to the “How to return the electronic parking brake” in the operation section.

Reinstall the floor plate and floor mat.
