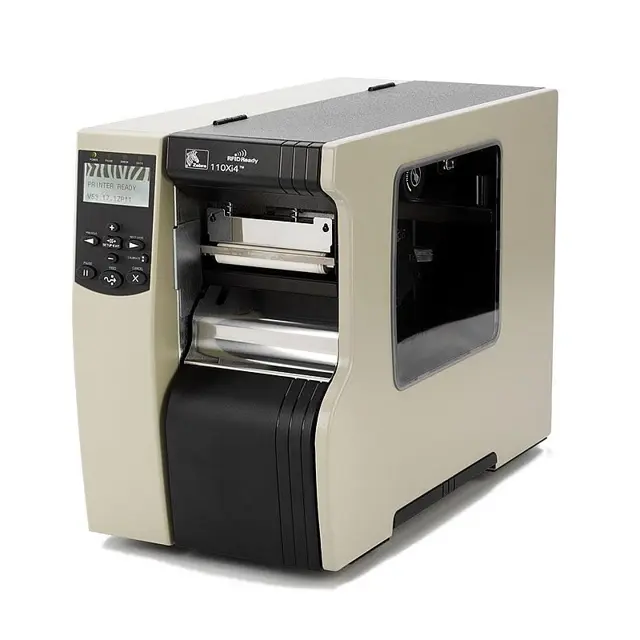

Zebra Printer 110XI4 200 dpi

Create an account to install this asset package.

Maintenance Plans for Zebra Printer Model 110XI4 200 dpi

Integrate maintenance plans directly into your work orders in MaintainX.

Printer Cleaning

Warning: The cutter blade is sharp. Do not touch or rub the blade with your fingers.

Turn off (O) the printer and disconnect it from the power source before performing the following procedure.

Printer turned off and disconnected from power source

Upload a photo of the stationary cutter blade before cleaning

Cleaned the stationary cutter blade using the swab from the Preventive Maintenance Kit or a clean swab dipped in a solution of isopropyl alcohol (minimum 90%) and deionized water (maximum 10%)

Upload a photo of the stationary cutter blade after cleaning

Did cleaning remove label fragments and adhesive?

If cleaning did not remove label fragments and adhesive, contact an authorized service technician.

Reconnected the data cables and AC power cord, and turned on (l) the printer

Run this procedure

Transmissive (Media) Sensor Cleaning

Clean by Air blow.

Perform these procedures at the following times:

• When CLEAN HEAD NOW appears.

• Direct Thermal Print Mode: After every roll of labels or 500 ft (150 m) of fanfold labels.

• Thermal Transfer Print Mode: After every roll (1500 ft or 450 m) of ribbon.

Run this procedure

Cutter Blade Lubrication

Warning: The cutter blade is sharp. Do not touch or rub the blade with your fingers.

Caution: Some commercially available lubricants will damage the finish and the mechanical parts if used inappropriately on this printer.

Enter the number of cuts made

Was the lubrication successful?

Upload a photo of the lubricated blade

Sign off on the cutter blade lubrication

Run this procedure

Ribbon Sensor Cleaning

Warning: Ensure the machine is turned off before starting the cleaning process

CLEAN HEAD NOW message appears?

Select the print mode

Air blow cleaning performed?

Sign off on the cleaning process

Run this procedure

Fuse Replacement

Warning: This procedure is for the 140Xi4, 170Xi4, and 220Xi4 printers only. Fuses are not user-replaceable in the 110Xi4.

Caution: Turn the AC power switch off (O) and remove the power cord before performing this procedure.

The printer uses a metric-style fuse (5 × 20 mm IEC) rated at F5A, 250 V. The AC power entry module comes with two approved fuses in the fuse holder: one is in-circuit, and the second is provided as a spare. The end caps of the fuse must bear the certification mark of a known international safety organization.

Turn off (O) the printer, and disconnect the AC power cord and all data cables.

Use a small-blade screwdriver or similar tool to remove the fuse holder.

Remove the faulty fuse and install a new fuse in the in-circuit position.

Important: If you use the spare fuse, be sure to order a replacement fuse from an authorized Zebra distributor. The spare fuse should be the exact type and rating as the original in-circuit fuse.

Snap the fuse holder back into the AC power entry module.

Reconnect the data cables and AC power cord, and turn on (l) the printer.
