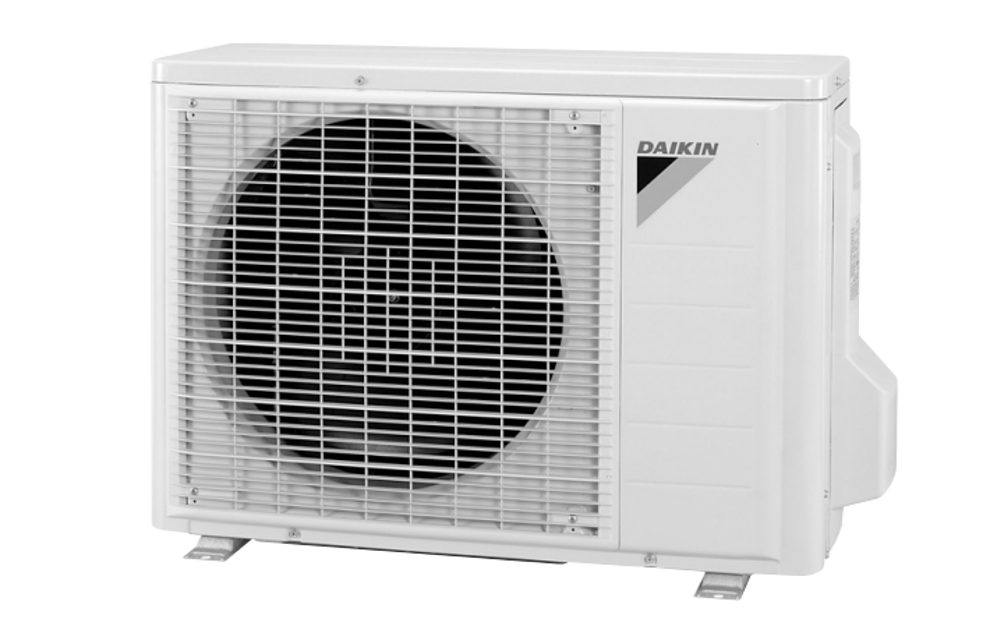

Daikin Outdoor Unit Cooling Only Air Conditioner RN35JV1G

Wait for 10 minutes or more after turning off all power supplies before disassembling work.

Ensure proper ventilation if refrigerant gas leaks during work.

Collect all refrigerant gas to avoid atmospheric discharge.

Ensure refrigerant gas is empty in the circuit.

Apply nitrogen replacement when heating up the brazed part.

Provide a protective sheet or steel plate to shield peripheries from brazing flame.

Wait for 10 minutes or more after turning off all power supplies before starting disassembly.

Ensure pipes and other parts heated by the gas brazing machine are cool to avoid burns.

Is the room ventilated in case of refrigerant gas leakage?

Prepare wet cloth to extinguish fire immediately in case refrigerant oil catches fire.

Ensure refrigerant gas is not discharged into the atmosphere and is collected properly.

Restore piping using non-oxidation brazing.

Wait for 10 minutes or more after turning off all power supplies before disassembling work.

Remove the screw and remove the stop valve cover.

Remove the 3 screws and remove the top panel.

Remove the 4 screws and remove the discharge grille.

Remove the 8 screws of the front panel.

Unfasten the 4 hooks and remove the front panel.

Have all power supplies been turned off for at least 10 minutes?

Remove the electrical components

Remove the sound blanket (top) carefully

Untie the 2 strings and remove the sound blanket (body)
