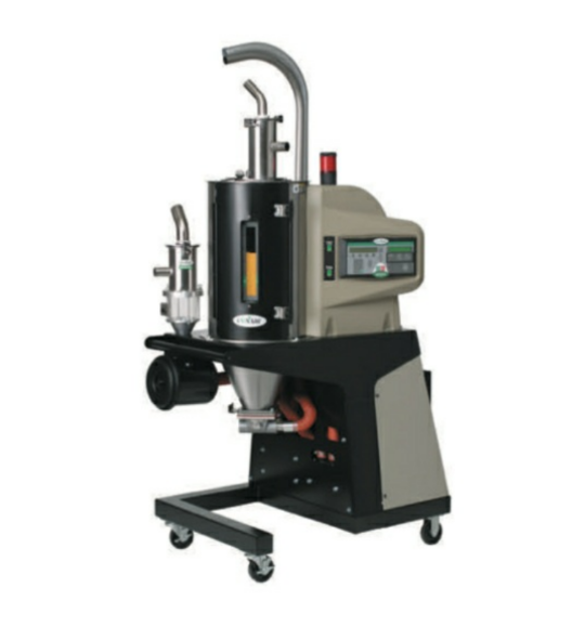

Conair Carousel Plus Dryer MDCW25

Disconnect the main power supply

Open the electrical enclosure door

Fuse Inspection and Replacement

Replace with a fuse of the same type and rating

Turn off switch to stop conveying

Disconnect the air and material hoses from the vacuum receiver

Open the vacuum receiver lid by turning the latch counterclockwise and flipping the lid open

Remove and clean the mesh filter. Lift the mesh filter out of the vacuum receiver. Clean or replace as necessary

Loosen the 3 thumbscrews, slide the clips aside, and lift the vacuum receiver body from the viewing chamber

Clean inside the vacuum receiver body with a clean rag

Remove and clean the viewing chamber. Lift the viewing chamber to release it from the mounting bracket

Stop the dryer and lockout the main power

Turn off the water flow to the water supply line and disconnect supply and return lines

Was an optional flow control added with the aftercooler?

Remove the compression fitting from the aftercooler inlet if flow control is present

Loosen the fitting on the flow control and swing the copper water supply tube out and away from the aftercooler inlet

Remove the two nuts securing the aftercooler in the housing

Remove the aftercooler assembly from the aftercooler housing

Turn off the conveying function

Remove the filter housing cover

Clean or replace the filter cartridge as necessary

Wear eye protection when using compressed air

Replace the filter cartridge and the filter housing cover

Check that all safety regulations are observed when using compressed air

Disconnect and lockout the main power supply

Ensure only qualified personnel make electrical connections

Locate the regeneration solid state relays

Refer to the wiring diagrams that came with your dryer
