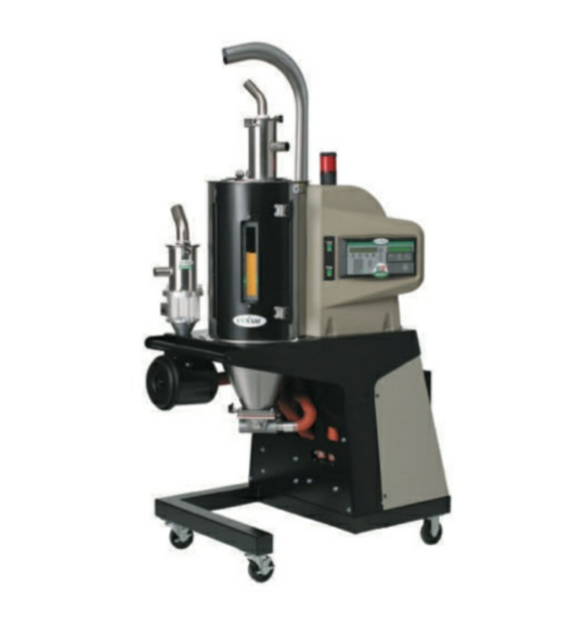

Conair Carousel Plus Dryer MDCW15

Turn off the conveying function using the switch on the front of the dryer.

Remove the filter housing cover.

Clean or replace the filter cartridge as necessary.

Wear eye protection when using compressed air.

Observe all OSHA and other safety regulations pertaining to the use of compressed air.

Inspection of Hoses and Gaskets

Inspect all hoses, clamps, fittings, and gaskets

Tighten any loose hose clamps or fittings

Replace worn or damaged gaskets

Disconnect and lockout the main power supply

Locate the regeneration solid state relays

Disconnect the main power source

Disconnect the compressed air source

Turn off the TLR loader or disconnect the control connection cable from the UTB

Open the lid of the TLR by releasing the swing clamp

Remove the screen filter for inspection

Inspect the filter for holes or damage

Stop the dryer and lockout the main power

Turn off the water flow to the water supply line

Disconnect supply and return lines

Was an optional flow control added with the aftercooler?

Remove the compression fitting from the aftercooler inlet if flow control is present

Loosen the fitting on the flow control and swing the copper water supply tube out and away from the aftercooler inlet

Remove the two nuts securing the aftercooler in the housing
