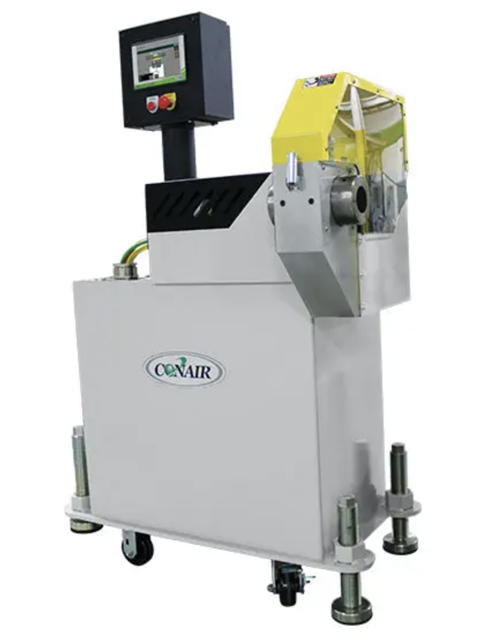

Conair Combination Puller/Cutter CSC4L

Turn the rotary disconnect to the OFF position

Remove the upper and lower belt guards

Release belt tension by loosening the threaded rods

Remove the belt from the puller

Check the rollers and pulleys for buildup, especially inside grooves

Clean rollers and pulleys if necessary

Checking hardware on the knife guard

Inspect the hardware on the knife guard

Checking bushing holder proximity switches

Inspect the proximity switch set screws

Adjust proximity switch set screws as needed

Cleaning the clear blade guard window

Clean the clear blade guard window using glass cleaner or plain water

Is there any sign of cracks, tears, or other damage on the belts?

Replace damaged belts if necessary

Turn the main power disconnect to the off position

Remove the upper and lower belt guards

Remove the screws attaching guards to unit (four each: top, bottom, front and rear)

Disconnect the safety cable (upper guard)

Check belt tension using a tension-measuring tool

Ensure belts are tight enough to prevent slipping

Ensure the gap between the upper and lower belts is even across the width

Adjust belt tension if necessary

Apply regular grease to the following locations

Apply Never-Seize or equivalent to the following locations

Apply Mobilgrease 28 or equivalent to the following locations

Is the grease applied correctly to all locations?

Notes on any issues or observations
